About the Product

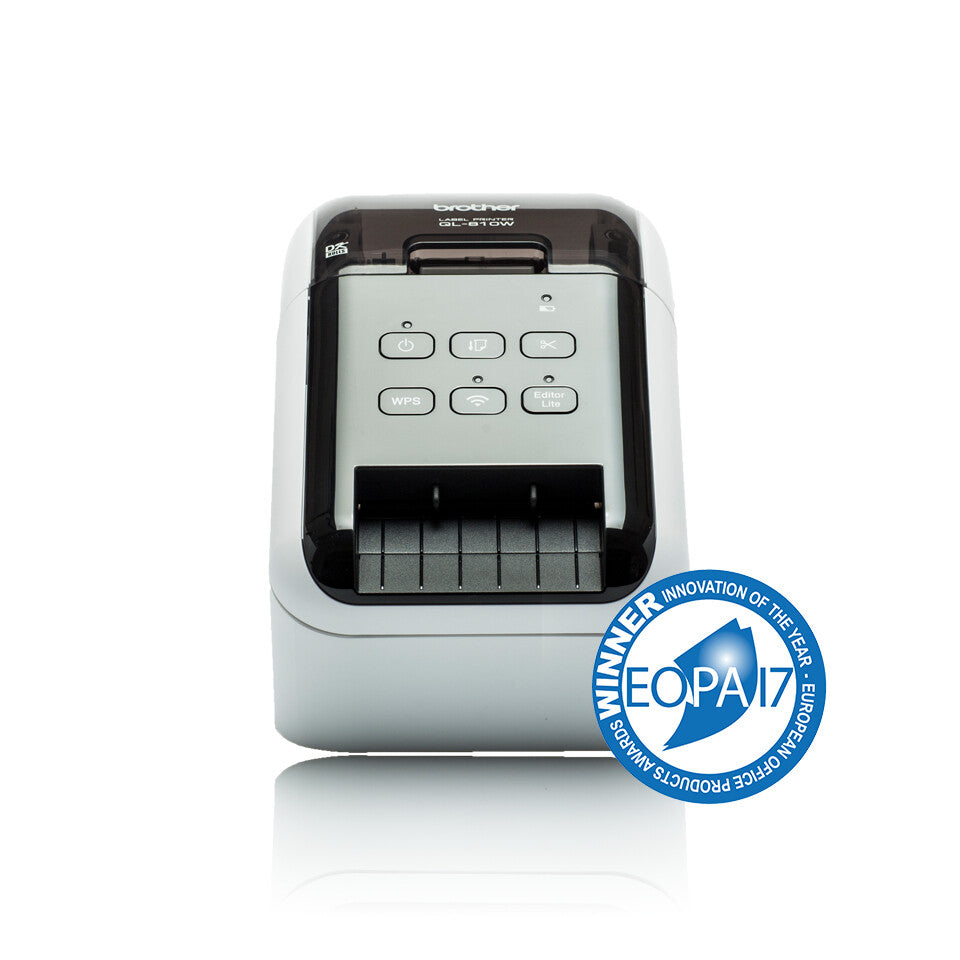

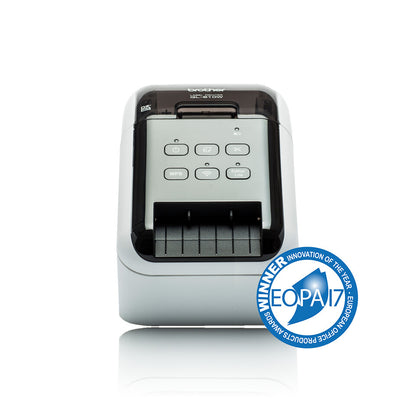

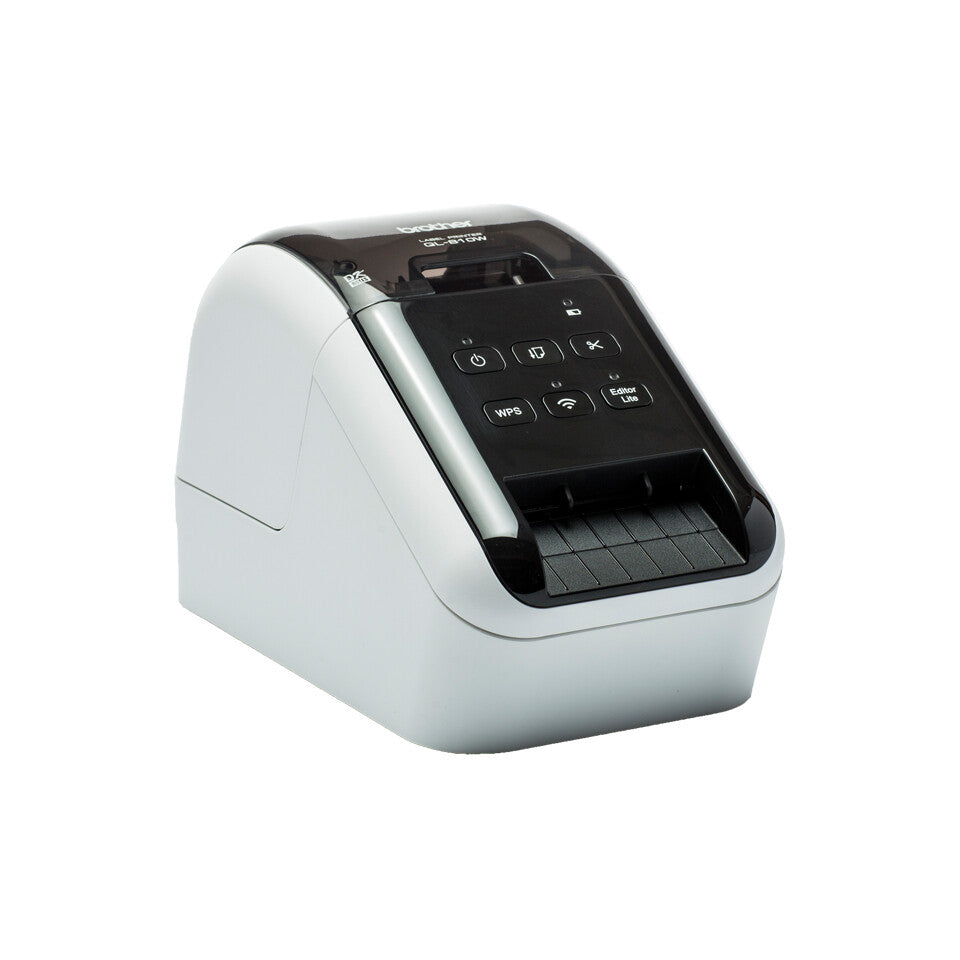

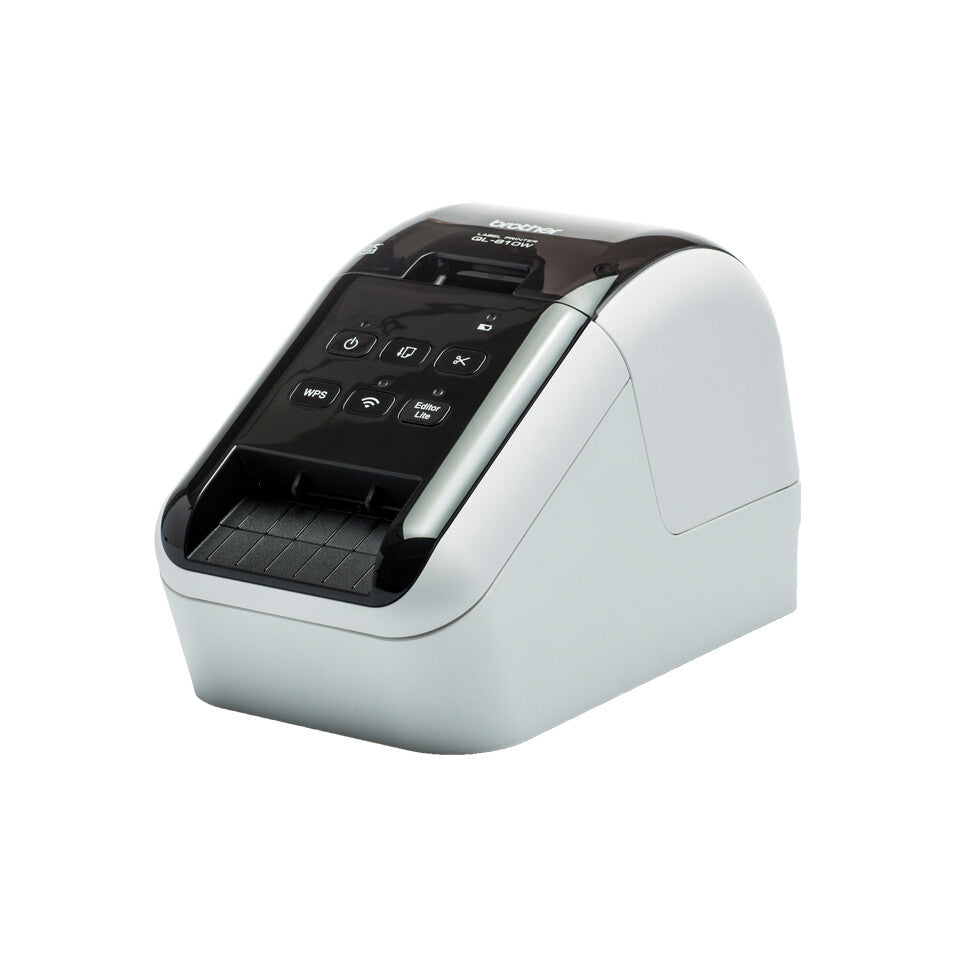

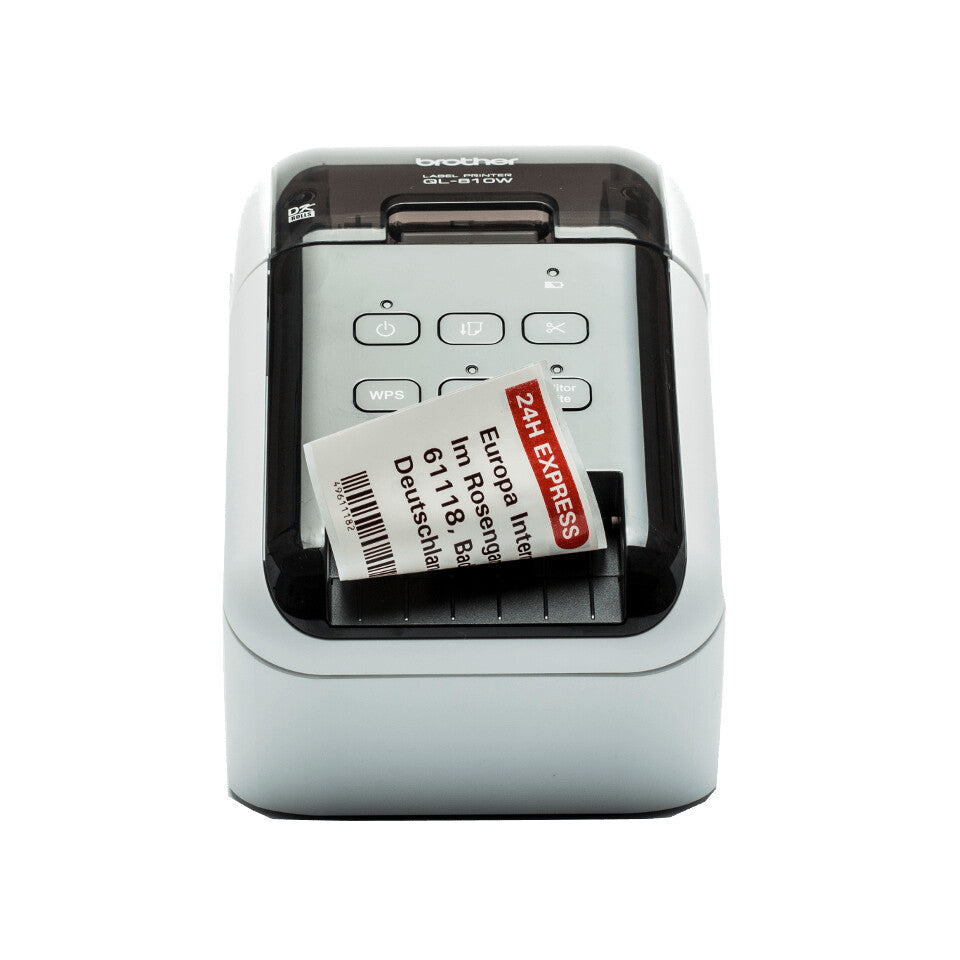

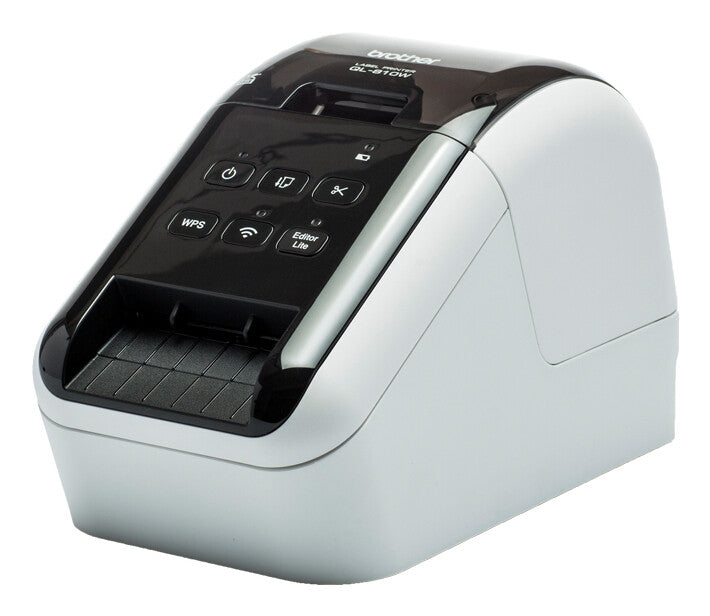

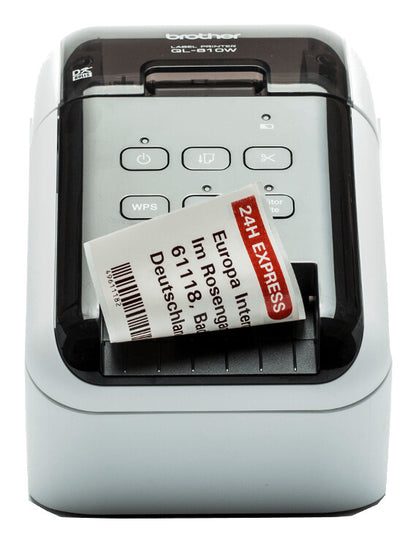

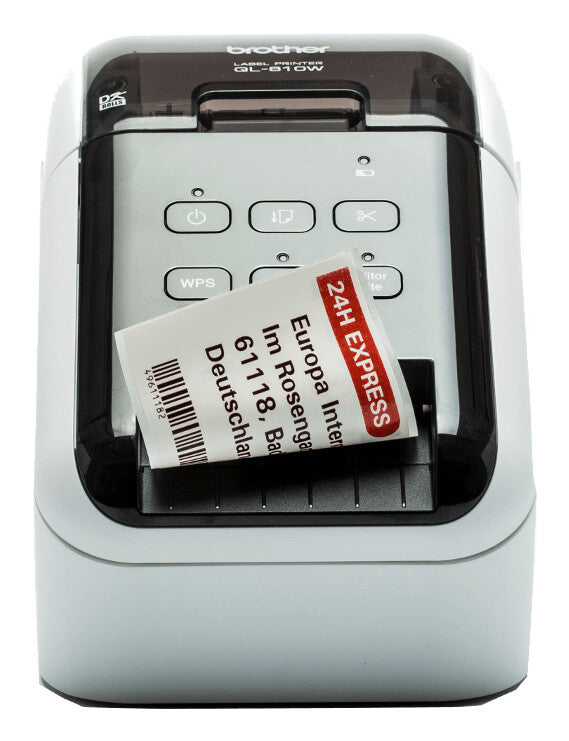

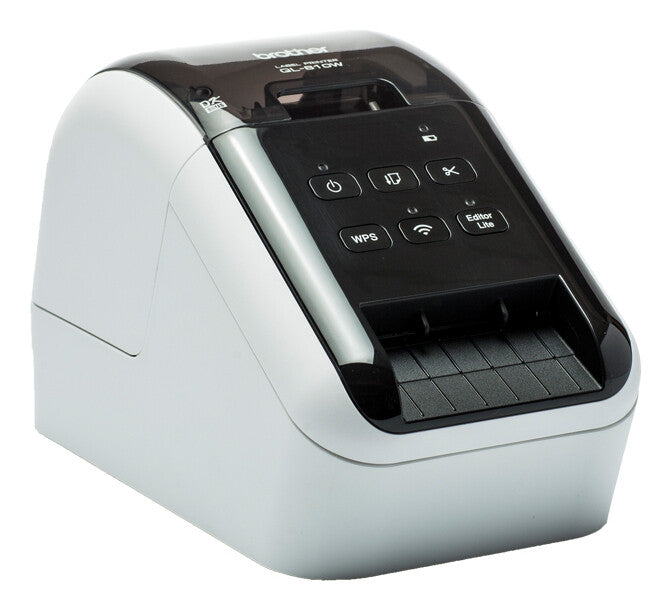

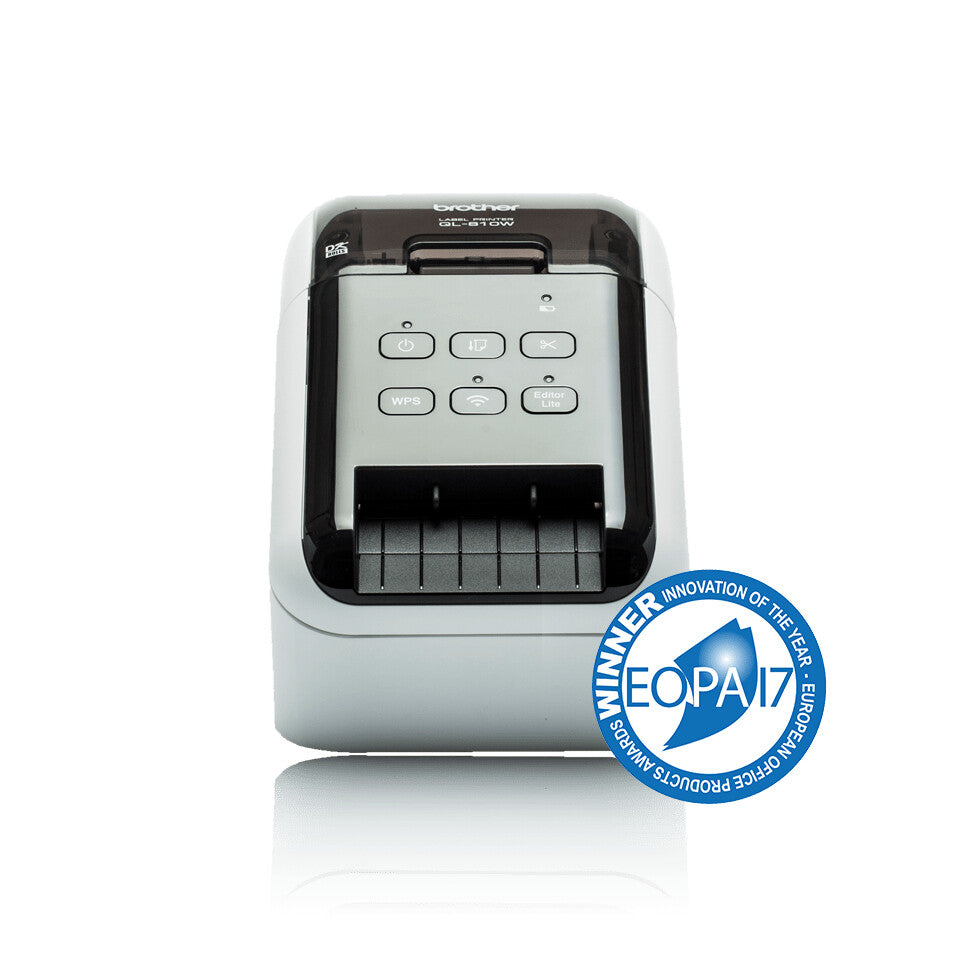

This high-speed label printer connects to your PC, Mac, smartphone or tablet using USB or Wi-Fi. The built-in P-touch Editor Lite software is so easy to use - simply connect the printer to your computer, click the icon to launch the software and design and print your labels.Thanks to its advanced print mechanism and special label roll, you can also print labels that can contain both black and red colours without the need for ink or toner.And when you discover you can print custom sized labels up to one metre in length using the integrated cutter and continuous label rolls, it's easy to understand why the QL-810W is the ideal choice for offices, workgroups, mail rooms and receptions..
| Printing | |
|---|---|
| Text alignment | Center, Left |
| Vertical printing | Yes |
| Rotated printing | Yes |
| Minimum print length | 100 cm |
| Maximum printing width | 5.8 cm |
| Printing colours | Black, Red |
| Print speed | 110 lpm |
| Maximum resolution | 300 x 600 DPI |
| Colour | Yes |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Maximum label width | 6.2 cm |
| Maximum label length | 4 m |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| Wi-Fi Direct | Yes |
| Mobile printing technologies | Apple AirPrint |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| Tape size detection | Yes |
| Number of styles | 8 |
| Security algorithms | AES, EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WEP, WPA-PSK, WPA2-PSK |
| Tape type | DK |
| Number of fonts | 5 |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Flash memory | 6 MB |
| Page description languages | ESC P, Raster_P |
| Design | |
|---|---|
| Housing material | Plastic |
| Built-in display | No |
| Product colour | Black, White |
| Power | |
|---|---|
| Rechargeable | Yes |
| Power source type | AC |
| Auto power off | Yes |
| Battery technology | Lithium-Ion (Li-Ion) |
| AC input voltage | 220 - 240 V |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android, iOS |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 2.25 kg |
| Height | 230 mm |
| Depth | 300 mm |
| Width | 185 mm |
| Packaging data | |
|---|---|
| Package weight | 2.67 kg |
| Package height | 232 mm |
| Package depth | 184 mm |
| Package width | 298 mm |
| Packaging content | |
|---|---|
| Bundled software | P-touch Editor LiteP-touch Editor 5P-touch Editor Lite LANP-touch Address BookBR Admin Light |
| Drivers included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
| AC adapter included | Yes |
| Manual | Yes |
| Batteries included | Yes |
| Cables included | AC, USB |
| Logistics data | |
|---|---|
| Products per pallet | 108 pc(s) |
| Layers per pallet | 6 pc(s) |
| Master (outer) cases per pallet layer | 6 pc(s) |
| Master (outer) cases per pallet | 36 pc(s) |
| Pallet gross weight | 328.3 kg |
| Pallet gross height | 16.5 cm |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
|---|---|
| Pallet type | 1200 x 1000 mm |
| Sustainability certificates | ENERGY STAR |
| Other features | |
|---|---|
| Country of origin | China |
| Label memory | 99 label(s) |
| Number of frames | 126 |
| Languages support | Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| Date & time printing | Yes |
| Number of languages | 18 |
| Spare part retention | 5 year(s) |
