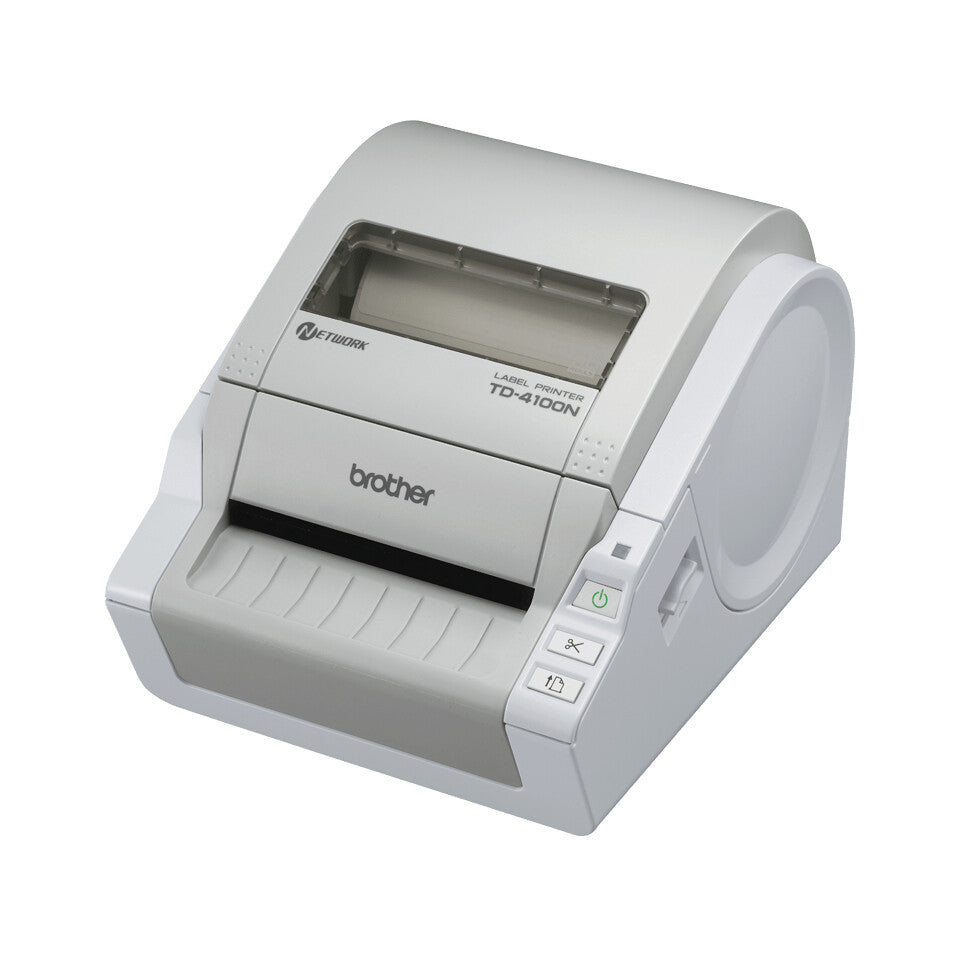

Brother TD-4100N label printer Direct thermal 300 x 300 DPI 110 mm/sec
Brother TD-4100N label printer Direct thermal 300 x 300 DPI 110 mm/sec
TD-4100N
Desktop Bar Code Network Printer
Windows® GDI technology revolutionized how we view and use software today, so why limit how you print your labels, receipts and tags with legacy printer restrictions?
The TD-4100N desktop bar code printer is a true GDI network printer, fully compatible with Windows® OS computers – including Windows® 7¹. The TD-4100N will print on most medium/high sensitivity direct thermal media in high quality 300 dots/inch print resolution, and comes ready with everything you need to start printing including the USB cable and PT-Editor, powerful but easy to use design software application.
Use PT-Editor to add bar codes, lines, curves, text and graphics, and print by typing in your data or link to a Microsoft® Excel® or Access® database file or SQL server and select one or multiple records. Or, use your own Windows®-based software application as the TD-4100N comes with a WHQL certified Windows®-based printer driver and is compatible with many third party Windows®-based software applications.
Unlike competitive models that require printing using their resident fonts and bar codes, the TD-4100N is host-based and can print text, bar codes and graphics from software, up to 4.3 inches/second. The built-in automatic cutter reliably trims receipts and continuous labels to your desirable length, or configure it to cut after printing die cut labels – either one at a time or after printing a strip of multiple labels.
The TD-4100N is built around a mechanism with a history of reliability and comes with a 1 year limited warranty and toll free customer support. With this combination of high performance, value add and reliability, why not experience this for yourself and see why the TD-4100N is the best value desktop bar code printer for your Windows®-based application.
Main Features
- High performance, 4” wide desktop bar code printer
- Uses Genuine Brother or most medium/high sensitivity direct thermal label, receipt and tag media
- Fully compatible with Windows® OS computers, including Windows® 7¹
- Bundled with PT-Editor print application design software
- Prints high quality 300 dpi text, graphics and bar codes
- Fast, host based printing – up to 4.3 ips
- Reliable built-in automatic cutter
- 10/100 Base TX Ethernet, USB 2.0 and RS-232C serial interface connectivity
| Printing | |
|---|---|
| Vertical printing | Yes |
| Print speed | 110 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Maximum label width | 10.2 cm |
| Maximum label length | 3 m |
| Maximum roll diameter | 10.2 cm |
| Media thickness | 0.076 - 0.153/0.178 mm |
| Ports & interfaces | |
|---|---|
| Standard interfaces | USB 2.0, Ethernet |
| PC connected | Yes |
| Performance | |
|---|---|
| Number of styles | 7 |
| Tape cutting | Automatic |
| Number of fonts | 5 |
| Built-in barcodes | Codabar (NW-7), EAN13, EAN8, Maxicode, Postnet, QR Code, UPC-A, UPC-E |
| Internal memory | 2 MB |
| Design | |
|---|---|
| Product colour | Grey |
| Power | |
|---|---|
| Power requirements | 220-240VAC, 50/60 Hz, 1.8A |
| System requirements | |
|---|---|
| Compatible operating systems | Windows XP/7, Windows Vista, Windows Server 2003/2008 |
| Minimum storage drive space | 70 MB |
| Minimum RAM | 128 MB |
| Mac compatibility | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 1.83 kg |
| Height | 158 mm |
| Depth | 229 mm |
| Width | 173 mm |
| Packaging data | |
|---|---|
| Package dimensions (WxDxH) | 360 x 229 x 248 mm |
| Packaging content | |
|---|---|
| Bundled software | P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 173 x 229 x 158 mm |
| Network ready | Yes |
| Label type | RD |
Contains N9K06AE, N9K05AE
- 12-month warranty
Couldn't load pickup availability
About the Product
TD-4100N
Desktop Bar Code Network Printer
Windows® GDI technology revolutionized how we view and use software today, so why limit how you print your labels, receipts and tags with legacy printer restrictions?
The TD-4100N desktop bar code printer is a true GDI network printer, fully compatible with Windows® OS computers – including Windows® 7¹. The TD-4100N will print on most medium/high sensitivity direct thermal media in high quality 300 dots/inch print resolution, and comes ready with everything you need to start printing including the USB cable and PT-Editor, powerful but easy to use design software application.
Use PT-Editor to add bar codes, lines, curves, text and graphics, and print by typing in your data or link to a Microsoft® Excel® or Access® database file or SQL server and select one or multiple records. Or, use your own Windows®-based software application as the TD-4100N comes with a WHQL certified Windows®-based printer driver and is compatible with many third party Windows®-based software applications.
Unlike competitive models that require printing using their resident fonts and bar codes, the TD-4100N is host-based and can print text, bar codes and graphics from software, up to 4.3 inches/second. The built-in automatic cutter reliably trims receipts and continuous labels to your desirable length, or configure it to cut after printing die cut labels – either one at a time or after printing a strip of multiple labels.
The TD-4100N is built around a mechanism with a history of reliability and comes with a 1 year limited warranty and toll free customer support. With this combination of high performance, value add and reliability, why not experience this for yourself and see why the TD-4100N is the best value desktop bar code printer for your Windows®-based application.
Main Features
- High performance, 4” wide desktop bar code printer
- Uses Genuine Brother or most medium/high sensitivity direct thermal label, receipt and tag media
- Fully compatible with Windows® OS computers, including Windows® 7¹
- Bundled with PT-Editor print application design software
- Prints high quality 300 dpi text, graphics and bar codes
- Fast, host based printing – up to 4.3 ips
- Reliable built-in automatic cutter
- 10/100 Base TX Ethernet, USB 2.0 and RS-232C serial interface connectivity
| Printing | |
|---|---|
| Vertical printing | Yes |
| Print speed | 110 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Maximum label width | 10.2 cm |
| Maximum label length | 3 m |
| Maximum roll diameter | 10.2 cm |
| Media thickness | 0.076 - 0.153/0.178 mm |
| Ports & interfaces | |
|---|---|
| Standard interfaces | USB 2.0, Ethernet |
| PC connected | Yes |
| Performance | |
|---|---|
| Number of styles | 7 |
| Tape cutting | Automatic |
| Number of fonts | 5 |
| Built-in barcodes | Codabar (NW-7), EAN13, EAN8, Maxicode, Postnet, QR Code, UPC-A, UPC-E |
| Internal memory | 2 MB |
| Design | |
|---|---|
| Product colour | Grey |
| Power | |
|---|---|
| Power requirements | 220-240VAC, 50/60 Hz, 1.8A |
| System requirements | |
|---|---|
| Compatible operating systems | Windows XP/7, Windows Vista, Windows Server 2003/2008 |
| Minimum storage drive space | 70 MB |
| Minimum RAM | 128 MB |
| Mac compatibility | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 1.83 kg |
| Height | 158 mm |
| Depth | 229 mm |
| Width | 173 mm |
| Packaging data | |
|---|---|
| Package dimensions (WxDxH) | 360 x 229 x 248 mm |
| Packaging content | |
|---|---|
| Bundled software | P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 173 x 229 x 158 mm |
| Network ready | Yes |
| Label type | RD |
