Epson ELPWP20 - Wireless Presentation System
Epson ELPWP20 - Wireless Presentation System
Plug, click and share
Enhancing communication, creativity and collaboration is at the heart of any workspace and team. And now, thanks to Epson's ELPWP20 wireless presentation system, you can enrich this vision. Users can simply turn up, plug in their laptops and start sharing content.

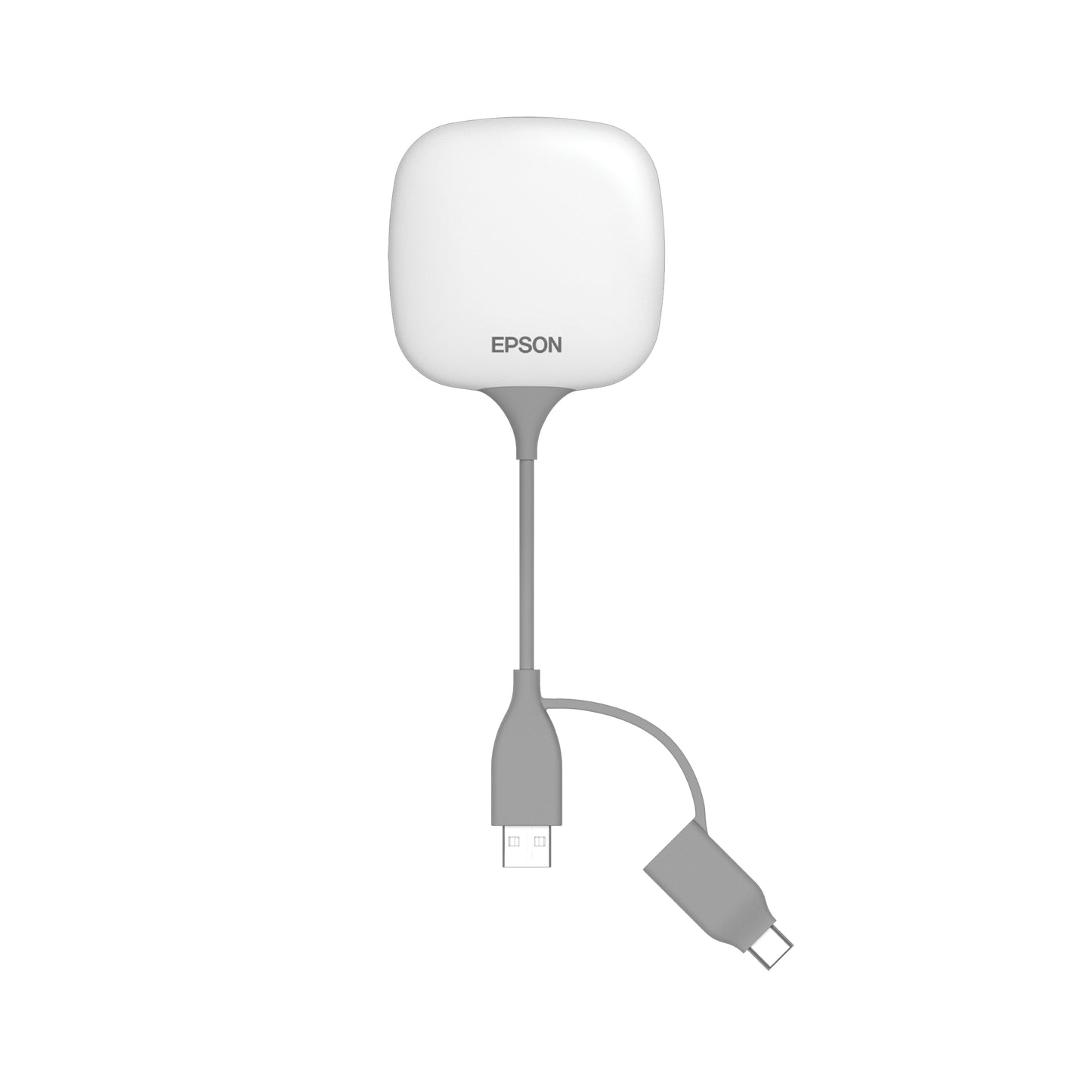

With the ELPWP20, users can collaborate more easily than ever before. Using the compact wireless transmitter it’s easy to share content at the touch of a button; simply launch any program on your laptop and the ELPWP20 makes it easy to show that content on your display - whatever display hardware you are using.
Simply plug the wireless transmitter into the PC or Mac and click on the built-in app to begin transmitting content from the laptop to the display. Alternatively, users can share using Miracast, which is built-in to Windows, Android and Chromebooks. Mobile devices based on Windows, Android, iOS or Chrome can also connect via Epson's free of charge iProjection app.
Up to 4 devices can be displayed simultaneously, and video conferencing systems can also be integrated via the HDMI inputs on the receiver.
The ELPWP20 receiver connects to the display via its HDMI input - meaning it is compatible with any display, regardless of manufacturer or technology.
To ensure security is maintained at all times, the signal between the transmitter and receiver is encrypted using AES encryption, protecting your transmitted content from unauthorised access.
As there is no physical button on the transmitters they can be sanitised after use, for full hygiene protection.
| Design | |
|---|---|
| Form factor | Desktop |
| Product colour | White |
| Features | |
|---|---|
| Maximum resolution (HDMI) | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| AirPlay mirroring | No |
| Screen mirroring | No |
| Maximum frame rate | 18 fps |
| Moderator function | Yes |
| Google Cast | No |
| Miracast | Yes |
| Number of users | 4 user(s) |
| Number of simultaneously connected devices (max) | 4 |
| Network | |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Security algorithms | WPA2-Personal, WPA3-Personal, 128-bit AES |
| Maximum operating distance | 10 m |
| Ports & interfaces | |
|---|---|
| Interface | HDMI |
| HDMI input ports quantity | 2 |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) out | 1 |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
|---|---|
| Package width | 270 mm |
| Package depth | 345 mm |
| Package height | 210 mm |
| Package weight | 3.18 kg |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Products per pallet | 80 pc(s) |
| Country of origin | Indonesia |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
|---|---|
| Pallet gross weight | 0 g |
| Warranty period | 3 year(s) |
Contains N9K06AE, N9K05AE
- 12-month warranty
Couldn't load pickup availability
About the Product
Plug, click and share
Enhancing communication, creativity and collaboration is at the heart of any workspace and team. And now, thanks to Epson's ELPWP20 wireless presentation system, you can enrich this vision. Users can simply turn up, plug in their laptops and start sharing content.
With the ELPWP20, users can collaborate more easily than ever before. Using the compact wireless transmitter it’s easy to share content at the touch of a button; simply launch any program on your laptop and the ELPWP20 makes it easy to show that content on your display - whatever display hardware you are using.
Simply plug the wireless transmitter into the PC or Mac and click on the built-in app to begin transmitting content from the laptop to the display. Alternatively, users can share using Miracast, which is built-in to Windows, Android and Chromebooks. Mobile devices based on Windows, Android, iOS or Chrome can also connect via Epson's free of charge iProjection app.
Up to 4 devices can be displayed simultaneously, and video conferencing systems can also be integrated via the HDMI inputs on the receiver.
The ELPWP20 receiver connects to the display via its HDMI input - meaning it is compatible with any display, regardless of manufacturer or technology.
To ensure security is maintained at all times, the signal between the transmitter and receiver is encrypted using AES encryption, protecting your transmitted content from unauthorised access.
As there is no physical button on the transmitters they can be sanitised after use, for full hygiene protection.
| Design | |
|---|---|
| Form factor | Desktop |
| Product colour | White |
| Features | |
|---|---|
| Maximum resolution (HDMI) | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| AirPlay mirroring | No |
| Screen mirroring | No |
| Maximum frame rate | 18 fps |
| Moderator function | Yes |
| Google Cast | No |
| Miracast | Yes |
| Number of users | 4 user(s) |
| Number of simultaneously connected devices (max) | 4 |
| Network | |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Security algorithms | WPA2-Personal, WPA3-Personal, 128-bit AES |
| Maximum operating distance | 10 m |
| Ports & interfaces | |
|---|---|
| Interface | HDMI |
| HDMI input ports quantity | 2 |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) out | 1 |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur |
| Other operating systems supported | ChromeOS |
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions | |
|---|---|
| Package width | 270 mm |
| Package depth | 345 mm |
| Package height | 210 mm |
| Package weight | 3.18 kg |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Products per pallet | 80 pc(s) |
| Country of origin | Indonesia |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
|---|---|
| Pallet gross weight | 0 g |
| Warranty period | 3 year(s) |
