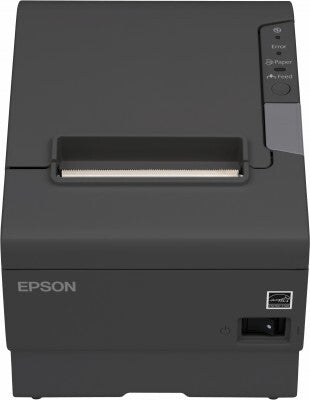

Epson TM-T88V (082): Serial, PS, EDG, UK
Epson TM-T88V (082): Serial, PS, EDG, UK

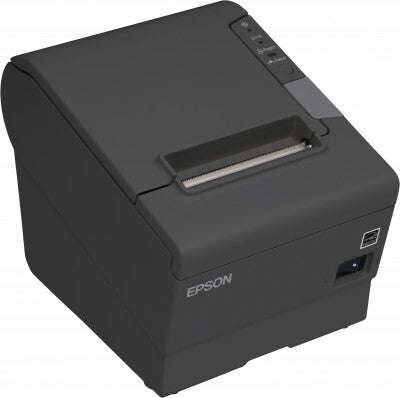

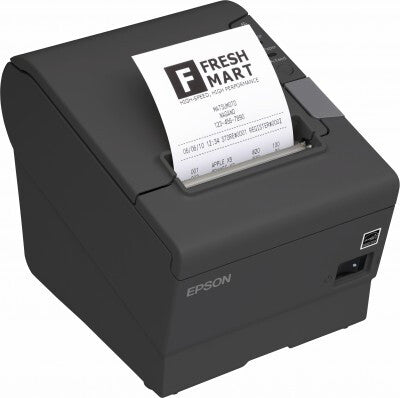

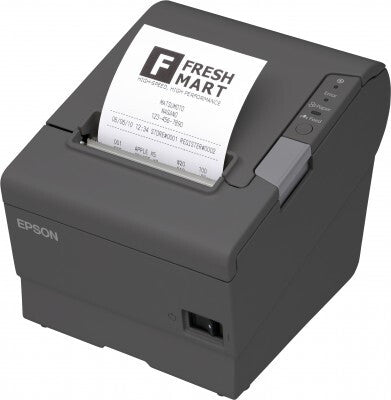

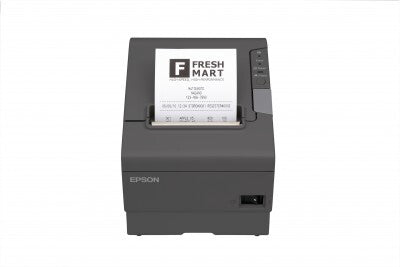

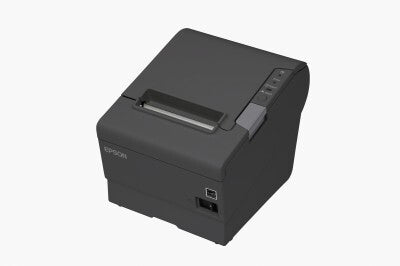

ENERGY STAR® receipt printer
The TM-T88V is a true breakthrough in the development of POS receipt printers, and the results are better for your budget and the environment. This is most clearly demonstrated with the paper reduction function. which cuts down on waste and cost. Green credentials are further proved by this being the first thermal receipt printer to be Energy Star qualified.
Actual print speed is an impressive and efficient 300mm per second while multiple grey scale printing enables better representation of logos and graphic images. The TM-T88V works on several platforms, so it's simple to integrate into your network and it also comes with in-built USB IF which means easy migration to USB in the future.
This is a highly reliable and easy-to-use POS printer, but with the interest of the customer being paramount, we have included a 4-year warranty as standard.
This product meets the strict ENERGY STAR® guidelines set by the European Commission. Epson is a global manufacturer committed to protecting the environment for future generations by offering a range of ENERGY STAR® products. This is achieved by significantly reducing electricity usage, which saves energy, money and the environment, without compromising quality.
| Printing | |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 11.8 ips |
| Paper handling | |
|---|---|
| Supported paper width | 80, 58 mm |
| Maximum roll diameter | 8.3 cm |
| Printing media thickness | 55 - 80 µm |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Interface | USB 2.0, RS-232, Drawer kick-out |
| Standard interfaces | RS-232, USB 2.0 |
| Serial ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Features | |
|---|---|
| Built-in barcodes | 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Autocutter durability | 2 million cuts |
| Country of origin | China |
| Safety | UL1950/CSA C22.2 No. 950 |
| Certification | FCC/ICES-003 |
| Design | |
|---|---|
| Product colour | Dark Grey |
| Power | |
|---|---|
| Power supply type | DC |
| Input current | 1.8 A |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating temperature (T-T) | 5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Width | 145 mm |
| Depth | 195 mm |
| Height | 148 mm |
| Weight | 1.6 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 240 mm |
| Package height | 235 mm |
| Package weight | 2.6 kg |
| Print technology | |
|---|---|
| Column capacity | 80mm: 42/56; 58mm: 30/40 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 255 mm |
| Products per pallet | 128 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.55 m |
| Products per pallet (UK) | 192 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.55 m |
| Technical details | |
|---|---|
| Box contents | 58-mm width paper guide plate, Connector Cover, Main unit, PS-180 & AC cable, Power switch cover, Thermal roll paper, User manual |
| Other features | |
|---|---|
| Buffer size | 4 KB |
| Dimensions (WxDxH) | 145 x 195 x 148 mm |
Contains N9K06AE, N9K05AE
