About the Product
The first of a generation, the SD5700T Thunderbolt™ 4 Dual 4K Docking Station with 90W PD - Win/Mac offers premium Thunderbolt benefits now, and well into the future; compatible with Thunderbolt™ 4-enabled Windows 10 laptops and backward compatibility with Thunderbolt™ 3 MacBooks running macOS 11 (Big Sur) or later, supports Thunderbolt™ 3, Thunderbolt™ 4, USB-C and USB4 accessories and provides full power delivery, regardless of how many devices are connected. Features include 11-ports, Single 8K @ 30 Hz, or up to Dual 4K @ 60Hz video, 40Gbps data transfer speeds, UHS-II SD 4.0 card reader speeds, and more.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Thunderbolt ports quantity | 4 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 90 W |
| USB Power Delivery | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Host interface | Thunderbolt 4 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 1000,100,10 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Compatibility | Engineered for Intel® Evo™ Laptop Accessory Program |
| Country of origin | China |
| LED indicators | Link, Power |
| Plug and Play | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Key lock | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Number of displays supported | 2 |
| HD type | 8K Ultra HD |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Product colour | Grey |
| Power | |
|---|---|
| Output voltage | 20 V |
| Output current | 9 A |
| Input current | 2.5 A |
| AC input voltage | 100 - 240 V |
| Software | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | 0 - 60 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 435 g |
| Height | 30 mm |
| Depth | 75 mm |
| Width | 195 mm |
| Packaging data | |
|---|---|
| Package weight | 1.7 kg |
| Package height | 105 mm |
| Package depth | 140 mm |
| Package width | 215 mm |
| Quantity per pack | 1 pc(s) |

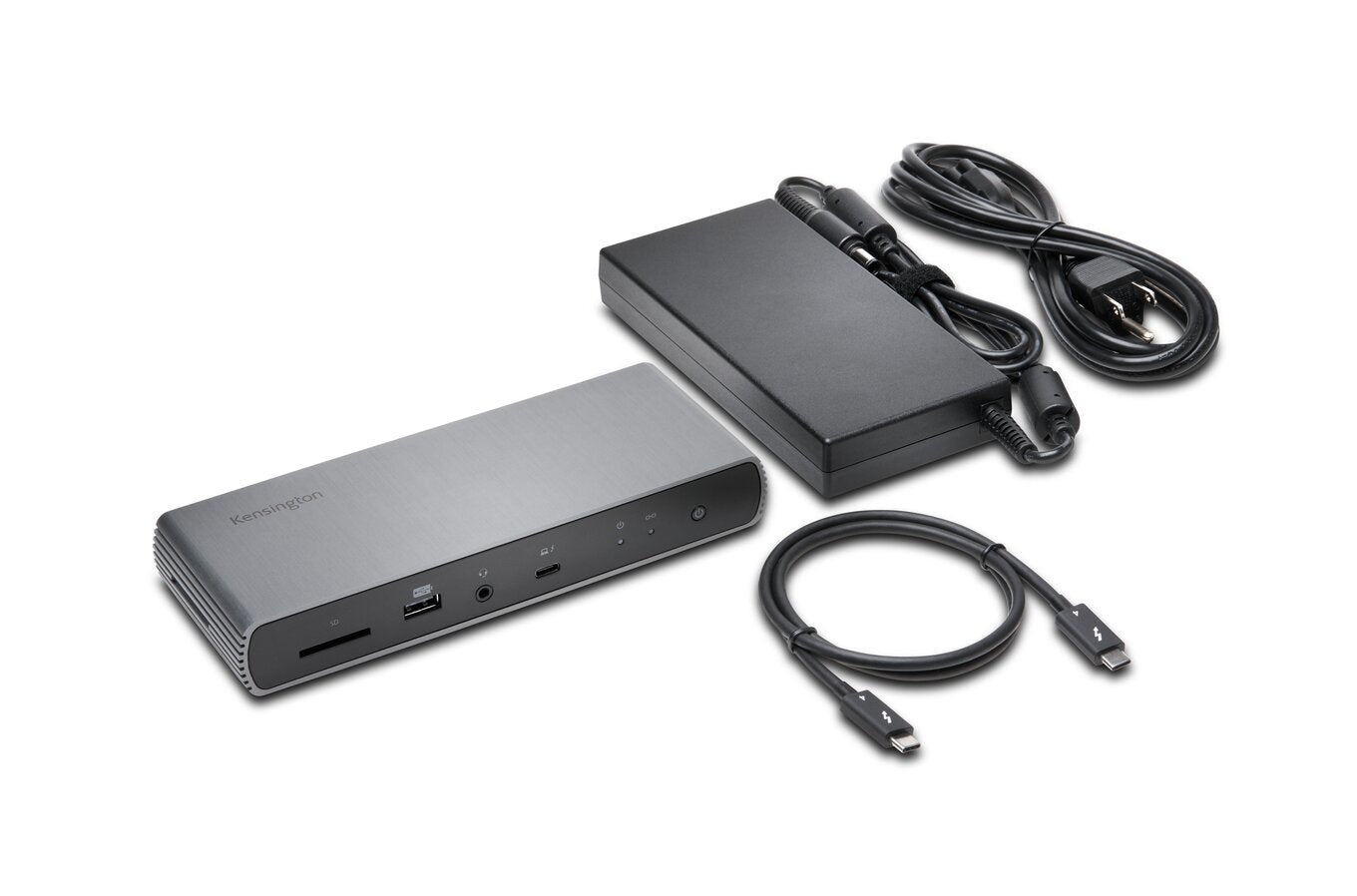

| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Warranty card | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Compatible operating systems | Chrome OS 91 or above; Windows 10 or above; macOS 11 or later |
| USB ports quantity | 4 |
