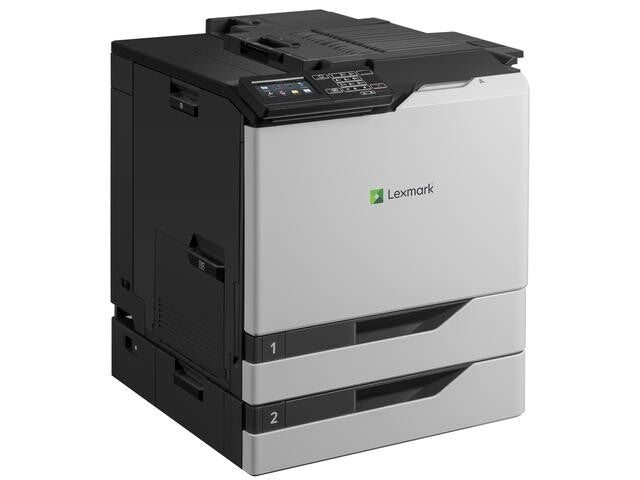

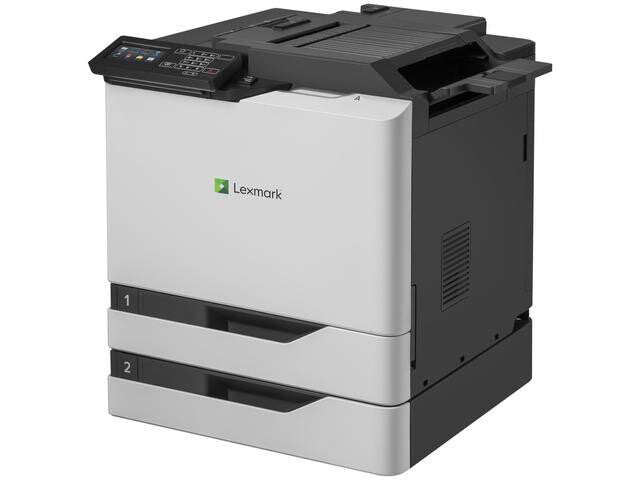

Lexmark CS820dtfe Colour 1200 x 1200 DPI A4
Lexmark CS820dtfe Colour 1200 x 1200 DPI A4
Production-level performance and professional colour quality
The Lexmark CS820dtfe colour printer brings production-level performance and quality to the office, with advanced imaging technology, standard input capacity of up to 1,200 pages and inline stapling.
Quad core power
A 1.33 GHz quad core processor with 1 GB of standard memory gives the CS820 Series a powerful print controller.
Professional colour
Professional colour features include ultra-sharp 4800 Colour Quality, PANTONE® calibration and spot colour replacement for repeatable colour accuracy even with critical corporate identity elements.
eSF flexibility
Lexmark-exclusive Embedded Solutions Framework (eSF) makes the printer programmable to meet the needs of each customer and industry. Several software solutions are included, and more can be added.
Advanced media handling with built-in staple finishing
Expand your output capabilities with standard input capacity of up to 1,100 pages (expandable to 4,500), built-in stapling, and the broadest media weight range possible – from tissue-thin paper to thick card stock.
Multi-touchscreen
The CS820 Series’ 10.9-cm (4.3-inch) colour touchscreen features an ultra-smooth surface that can be activated by almost anything, including pens, fingertips or nails – without pressure or direct skin contact.
Compact staple finisher
Automate corner stapling with an inline staple finisher that doesn’t compromise the printer’s compact footprint.
| Printing | |
|---|---|
| Time to first page (colour, normal) | 7 s |
| Time to first page (black, normal) | 7 s |
| Print speed (colour, normal quality, A4/US Letter) | 57 ppm |
| Print speed (black, normal quality, A4/US Letter) | 57 ppm |
| Print resolution colour | 2400 x 600 DPI |
| Maximum resolution | 1200 x 1200 DPI |
| Duplex printing | Yes |
| Print technology | Laser |
| Colour | Yes |
| Features | |
|---|---|
| Page description languages | Microsoft XPS, PCL 5c, PCL 6, PDF 1.7, PPDS, PostScript 3 |
| Number of print cartridges | 5 |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Recommended duty cycle | 2500 - 25000 pages per month |
| Maximum duty cycle | 200000 pages per month |
| Input & output capacity | |
|---|---|
| Maximum output capacity | 300 sheets |
| Maximum input capacity | 4500 sheets |
| Maximum number of input trays | 6 |
| Multi-Purpose tray input capacity | 100 sheets |
| Multi-Purpose tray | Yes |
| Paper input type | Paper tray |
| Total output capacity | 300 sheets |
| Total input capacity | 1200 sheets |
| Total number of input trays | 3 |
| Paper handling | |
|---|---|
| Multi-Purpose Tray media weight (imperial) | 27.2 - 79.8 kg (60 - 176 lbs) |
| Paper tray media weight (imperial) | 27.2 - 79.8 kg (60 - 176 lbs) |
| Photo paper sizes (imperial) | 4x6" |
| Envelopes sizes | 7 3/4, 9, 10, B5, C4, C5, DL |
| JIS B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | Executive, Folio, Letter, Oficio, Statement, Universal, Legal |
| ISO C-series sizes (C0...C9) | C4, C5 |
| ISO B-series sizes (B0...B9) | B5 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Paper tray media types | Banner, Card stock, Envelopes, Labels, Plain paper |
| Maximum ISO A-series paper size | A4 |
| Ports & interfaces | |
|---|---|
| Optional connectivity | Wireless LAN |
| USB 2.0 ports quantity | 3 |
| USB port | Yes |
| Standard interfaces | Ethernet, USB |
| Network | |
|---|---|
| Management protocols | HTTP, HTTPs (SSL/TLS), SNMPv1, SNMPv2c, SNMPv3, WINS, IGMP, BOOTP, RARP, APIPA (AutoIP), DHCP, ICMP, DNS, Bonjour, DDNS, mDNS, ARP, NTP, Telnet, Finger |
| Supported network protocols (IPv6) | TCP/IP, TCP, UDP |
| Supported network protocols (IPv4) | TCP/IP, TCP, UDP |
| Security algorithms | 802.1x RADIUS, IPSEC, LEAP, MSCHAPv2, PEAP |
| Network ready | Yes |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Noise level (idle) | 14 dB |
| Sound pressure level (duplex printing) | 57 dB |
| Sound pressure level (printing) | 56 dB |
| Processor frequency | 1.33 MHz |
| Built-in processor | Yes |
| Maximum internal memory | 3072 MB |
| Internal memory | 1024 MB |
| Design | |
|---|---|
| Certification | ICES-003 Class A, BSMI Class A, VCCI Class A, FCC Class A, NOM-032, UL, cUL, NOM, US FDA/CDRH, IEC 60825-1, CB Report, ISO-532B, CE (EU) DoC, EFTA (CE), KC logo, CCC, C-tick DoC, EuP, CECP, CEL, EC 1275/2008, ECMA-370, TED, SII, TER, SABS, UL-AR, GS Mark, Green Dot, ISO-9296, COC, CCD-035 EcoLogo, Green Mark, EPEAT |
| Control type | Touch |
| Display diagonal | 10.9 cm (4.3") |
| Touchscreen | Yes |
| Built-in display | Yes |
| Product colour | Black, White |
| Market positioning | Business |
| Power | |
|---|---|
| Energy Star Typical Electricity Consumption (TEC) | 3.3 kWh/week |
| Power consumption (printing) | 800 W |
| System requirements | |
|---|---|
| Other operating systems supported | Novell Open Enterprise Server |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 2896 m |
| Operating relative humidity (H-H) | 15 - 80% |
| Operating temperature (T-T) | 10 - 32 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | Blue Angel, ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 75.9 kg |
| Height | 690 mm |
| Depth | 522.4 mm |
| Width | 646 mm |
| Packaging data | |
|---|---|
| Package weight | 91.8 kg |
| Package height | 1000 mm |
| Package depth | 760 mm |
| Package width | 700 mm |
| Logistics data | |
|---|---|
| Master (outer) cases per pallet | 6 pc(s) |
| Other features | |
|---|---|
| Power LED | Yes |
| Stand-by LED | Yes |
Contains N9K06AE, N9K05AE
