About the Product
Versatility and professional colour with higher output capacity. Combines print/copy/scan/fax with more memory and PANTONE colour accuracy.

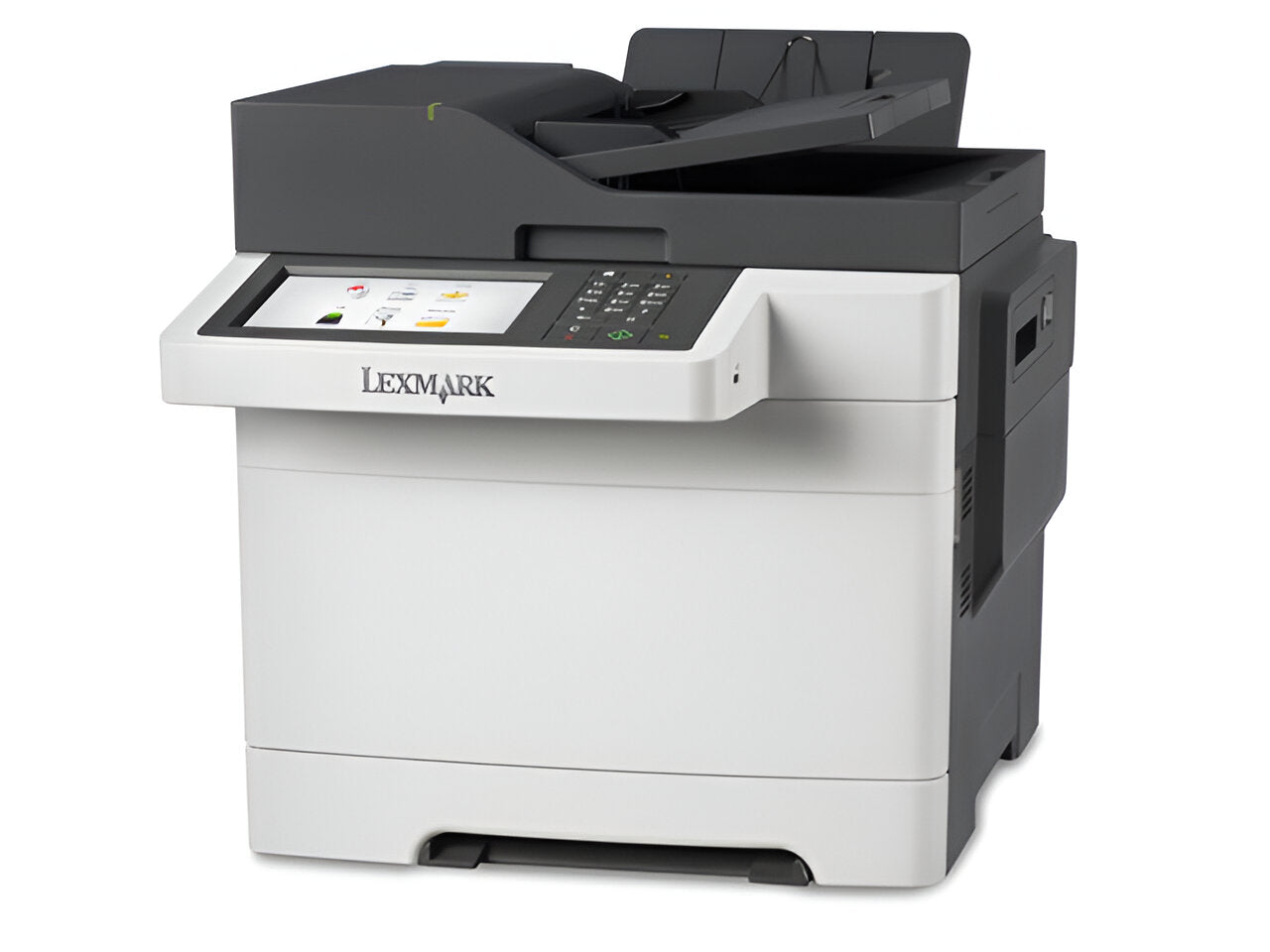

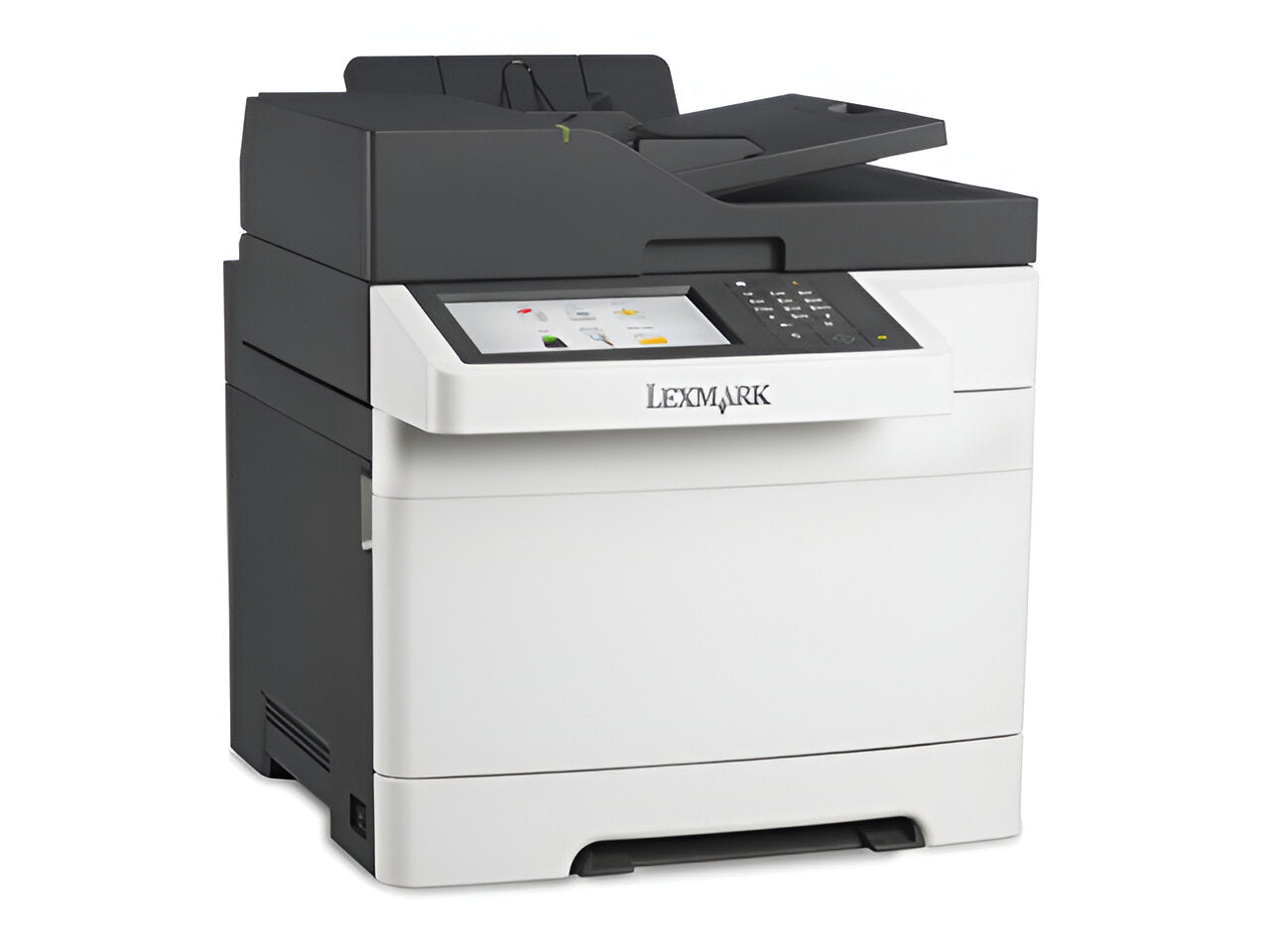

The CX517de delivers colour printing, copying and scanning up to 30 pages per minute. Includes Gigabit networking, advanced security and duplex scanning, plus mobile print capability.
4 year guarantee
For an added level of peace of mind, you can benefit from 4-year guarantee coverage.
Print complex documents fast
Print up to 30 pages per minute, with the first page in as little as 6.5 seconds, thanks to a powerful 800 MHz dual-core processor and 1.0GB of memory (expandable up to 3.0GB) that easily handles complex documents.
Reliable performance
Recommended for printing up to 7,000 pages per month, thanks to our state-of-the-art paper handling.
Run jobs without interruption
Add optional input trays to increase input capacity to up to 1,450 sheets, so you won’t have to add paper as often.
Outstanding supplies value
Lexmark’s exclusive Unison™ Toner keeps your cost of printing low, with toner yields that provide great value at budget friendly prices.
Mobile printing
Print from mobile devices using Lexmark’s free Mobile Print app or an optional Wi-Fi adaptor.
Device monitoring

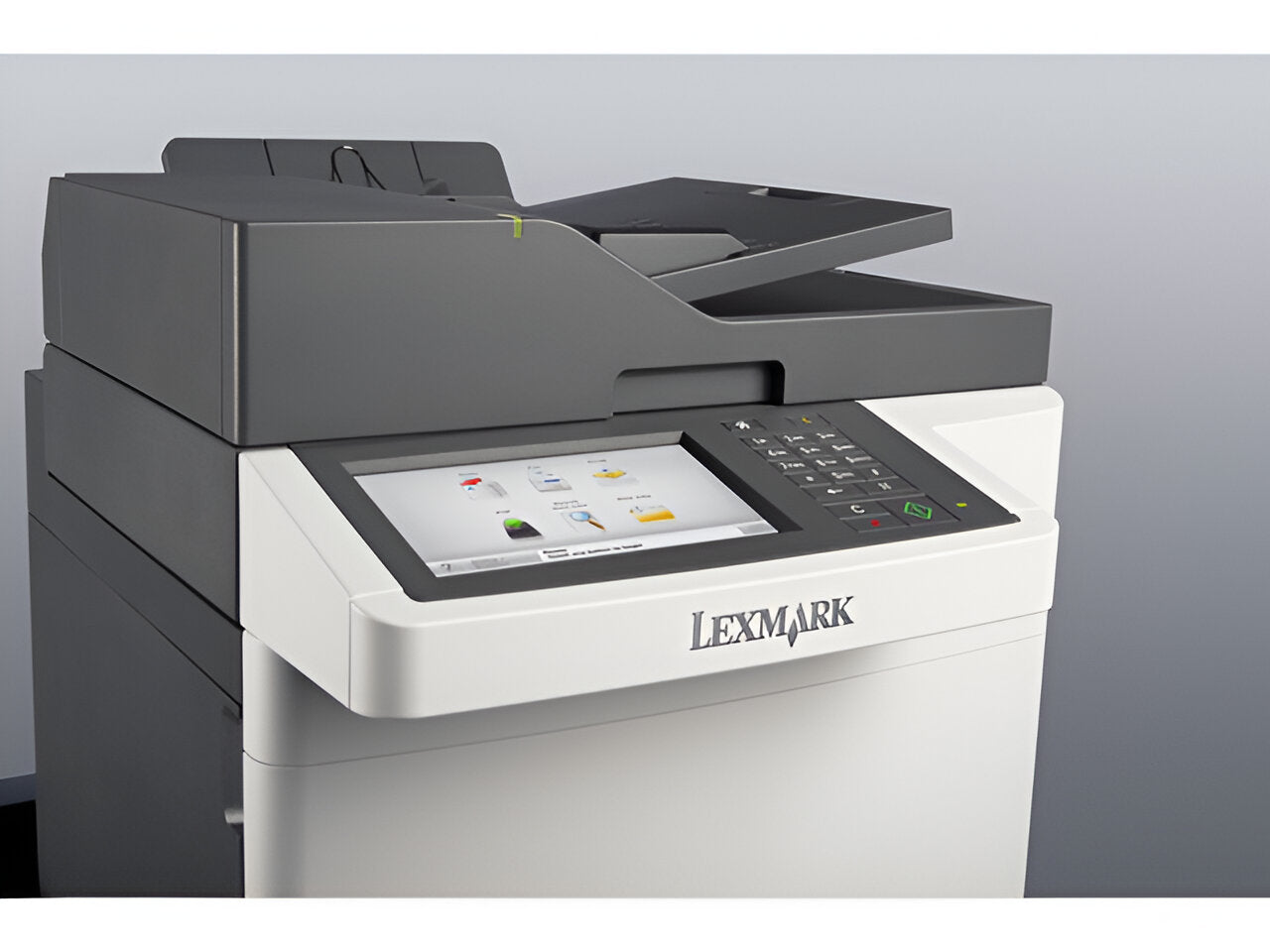

Monitor operating status and supply levels on the printer’s easy-to-use, 7.0-inch [17.8 cm] colour LCD screen or from a remote location via its web interface.
Printing | |
---|---|
Time to first page (colour, normal) | 11.5 s |
Time to first page (black, normal) | 10.5 s |
Duplex print speed (colour, normal quality, A4/US Letter) | 15 ppm |
Duplex print speed (black, normal quality, A4/US Letter) | 15 ppm |
Print speed (colour, normal quality, A4/US Letter) | 30 ppm |
Print speed (black, normal quality, A4/US Letter) | 30 ppm |
Print resolution black | 1200 x 1200 DPI |
Print resolution colour | 1200 x 1200 DPI |
Maximum resolution | 1200 x 1200 DPI |
Duplex printing | Yes |
Printing | Colour printing |
Print technology | Laser |
Copying | |
---|---|
Copier resize | 25 - 400% |
Time to first copy (colour, normal) | 11.6 s |
Time to first copy (black, normal) | 10.8 s |
Duplex copy speed (black, US Letter) | 15 ppm |
Copy speed (colour, normal quality, A4) | 30 cpm |
Copy speed (black, normal quality, A4) | 30 cpm |
Duplex copying | Yes |
Copying | Colour copying |
Scanning | |
---|---|
Document formats supported | PDF, XPS |
Image formats supported | JPG, TIF |
Duplex scan speed (black) | 13 ppm |
Duplex scan speed (colour) | 13 ppm |
Scan speed (colour) | 30 ppm |
Scan speed (black) | 30 ppm |
Scan to | E-mail, FTP, USB |
Scan technology | CCD |
Scanner type | Flatbed & ADF scanner |
Maximum scan area | 216 x 356 mm |
Optical scanning resolution (colour) | 1200 x 600 ppi |
Optical scanning resolution (black) | 600 x 600 ppi |
Duplex scanning | Yes |
Scanning | Colour scanning |
Fax | |
---|---|
Modem speed | 33.6 Kbit/s |
Fax transmission speed | 3 sec/page |
Faxing | Colour faxing |
Features | |
---|---|
Page description languages | Microsoft XPS, PCL 5c, PCL 6, PDF 1.7, PPDS, PostScript 3 |
Printing colours | Black, Cyan, Magenta, Yellow |
Recommended duty cycle | 1500 - 7000 pages per month |
Maximum duty cycle | 85000 pages per month |
Input & output capacity | |
---|---|
Maximum output capacity | 150 sheets |
Maximum input capacity | 1451 sheets |
Maximum number of input trays | 4 |
Auto document feeder (ADF) output capacity | 50 sheets |
Auto document feeder (ADF) input capacity | 50 sheets |
Auto document feeder (ADF) | Yes |
Paper input type | Paper tray |
Total output capacity | 150 sheets |
Total input capacity | 251 sheets |
Total number of input trays | 1 |
Paper handling | |
---|---|
Paper tray media weight | 60 - 176 g/m² |
JIS B-series sizes (B0...B9) | B5 |
Non-ISO print media sizes | Executive, Folio, Legal, Letter, Oficio, Universal |
ISO A-series sizes (A0...A9) | A4, A5 |
Paper tray media types | Card stock, Labels, Plain paper, Transparencies |
Maximum ISO A-series paper size | A4 |
Ports & interfaces | |
---|---|
Optional connectivity | Wireless LAN |
USB 2.0 ports quantity | 3 |
USB connector | USB Type-A / USB Type-B |
USB port | Yes |
Direct printing | Yes |
Standard interfaces | Ethernet, USB 2.0 |
Network | |
---|---|
Network printing methods | LPR/LPD, Direct IP (Port 9100), Enhanced IP (Port 9400), FTP, TFTP, ThinPrint .print integration, Telnet, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol), Microsoft Web Services WSD, Pull Printing |
Authentication method | 802.1x |
Management protocols | HTTP, HTTPs (SSL/TLS), SNMPv1, SNMPv2c, SNMPv3, WINS, IGMP, BOOTP, RARP, APIPA (AutoIP), DHCP, ICMP, DNS, DDNS, mDNS, ARP, NTP, Telnet, Finger |
Supported network protocols (IPv4) | TCP/IP IPv4, AppleTalk |
Supported network protocols (IPv6) | TCP/IP IPv6, TCP, UDP |
Security algorithms | IPSec, LEAP, MD5, MSCHAPv2, PEAP, SNMPv3, SSL/TLS, TTLS |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN | Yes |
Wi-Fi | No |
Performance | |
---|---|
Sound power level (standby) | 16 dB |
Sound pressure level (quiet mode) | 45 dB |
Sound pressure level (scanning) | 49 dB |
Sound pressure level (copying) | 50 dB |
Sound pressure level (duplex printing) | 52 dB |
Sound pressure level (printing) | 50 dB |
Processor cores | 2 |
Processor frequency | 800 MHz |
Built-in processor | Yes |
Maximum internal memory | 3072 MB |
Internal memory | 1024 MB |
Design | |
---|---|
Colour display | Yes |
Control type | Touch |
Touchscreen | Yes |
Display diagonal | 17.8 cm (7") |
Built-in display | Yes |
Market positioning | Business |
Product colour | Grey |
Power | |
---|---|
Energy Star Typical Electricity Consumption (TEC) | 2.9 kWh/week |
Power consumption (off) | 0.5 W |
Power consumption (sleep) | 3.7 W |
Power consumption (ready) | 35 W |
Power consumption (scanning) | 55 W |
Power consumption (copying) | 640 W |
Power consumption (printing) | 600 W |
Power consumption (average operating) | 600 W |
Power consumption (max) | 640 W |
System requirements | |
---|---|
Other operating systems supported | HP-UX 11.11, HP-UX 11.23, HP-UX 11.31, IBM AIX 5.3, IBM AIX 6.1, IBM AIX 7.1, Novell Distributed Print Services (NDPS), Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC, Solaris 9 SPARC |
Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2 |
Linux operating systems supported | Yes |
Mac operating systems supported | Yes |
Windows operating systems supported | Yes |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 8 - 80% |
Operating temperature (T-T) | 16 - 32 °C |
Operating altitude | 0 - 2896 m |
Certificates | |
---|---|
Certification | ENERGY STAR, Blue Angel RAL-UZ-171, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62301 Class B, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EN 55024, UL), EFTA (CE), KCC, CCC, CECP, CEL, C-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, MET-I, ISO 532B, ECMA-370, GOST-R, SII, TER |
Sustainability | |
---|---|
Sustainability certificates | Blue Angel, ENERGY STAR |
Weight & dimensions | |
---|---|
Weight | 28.2 kg |
Height | 470 mm |
Depth | 589 mm |
Width | 444 mm |
Packaging data | |
---|---|
Package weight | 32.7 kg |
Package height | 570 mm |
Package depth | 645 mm |
Package width | 558 mm |
Packaging content | |
---|---|
Power cord included | Yes |
Warranty card | Yes |
Imaging unit included | Yes |
Included cartridge capacity (CMY) | 1400 pages |
Included cartridge capacity (black) | 3000 pages |
Cartridge(s) included | Yes |
Other features | |
---|---|
Finishing option | No |
Software CD | Yes |
Documentation CD | Yes |
