About the Product

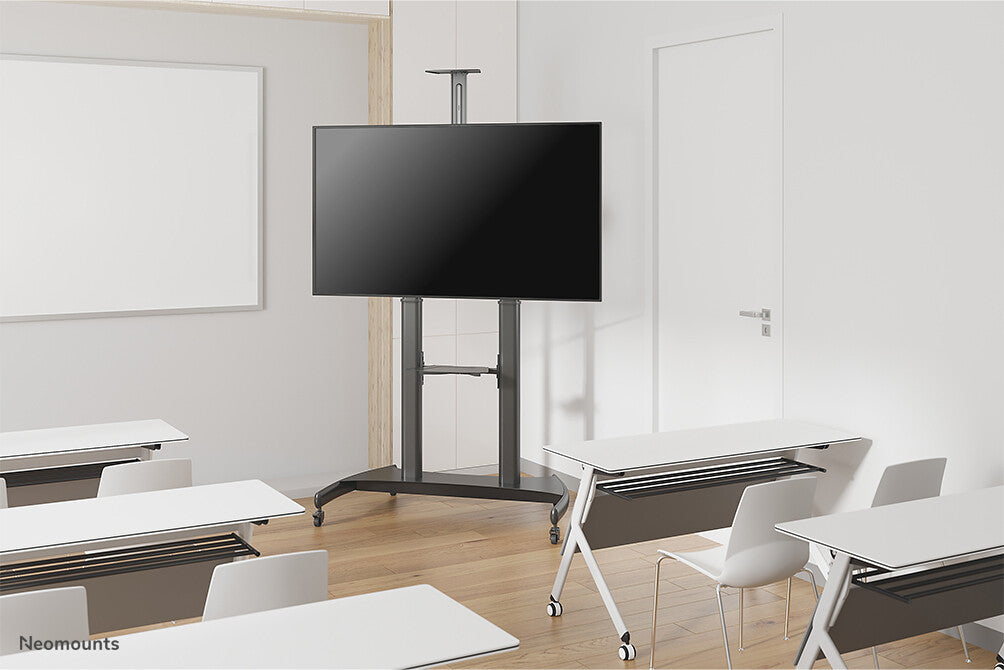

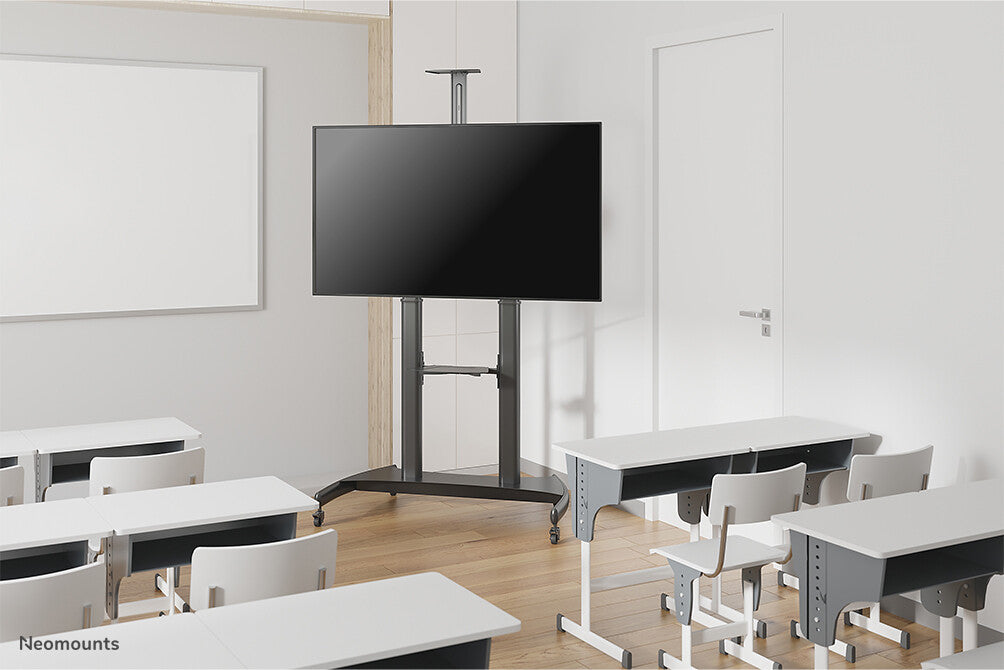

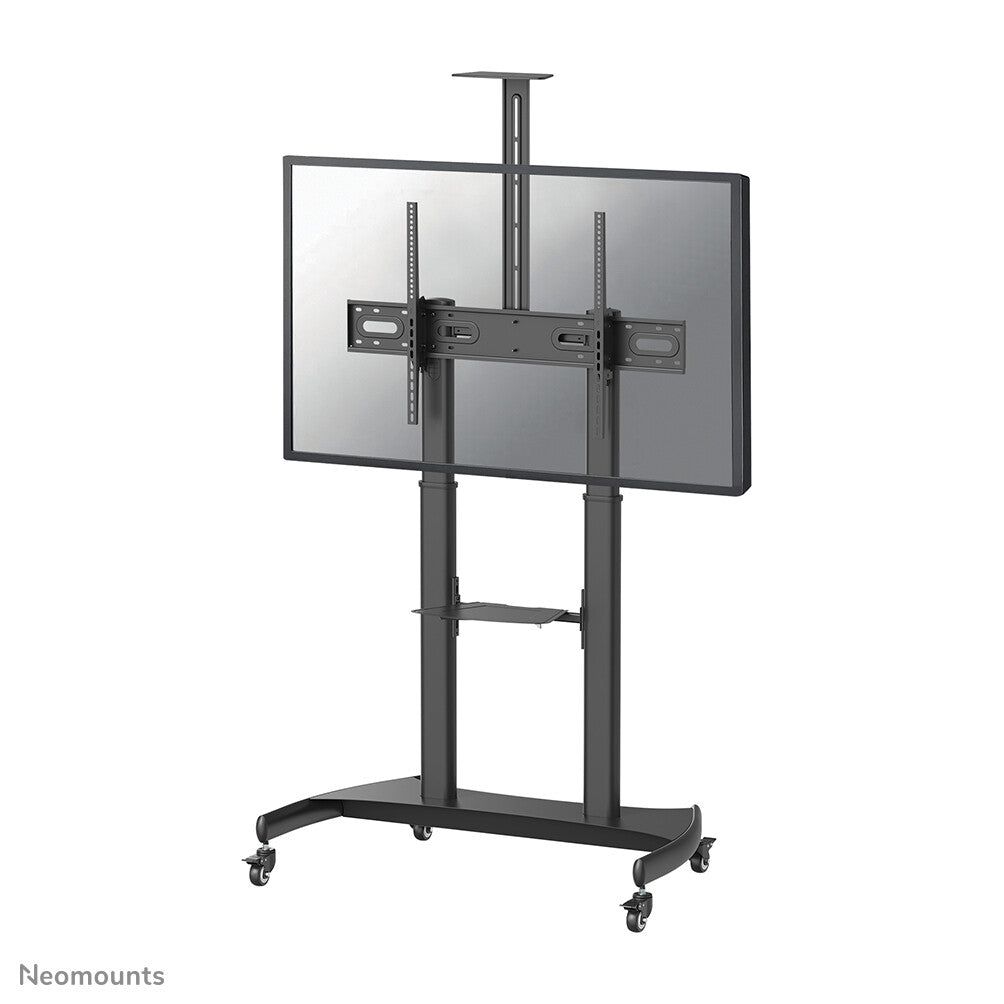

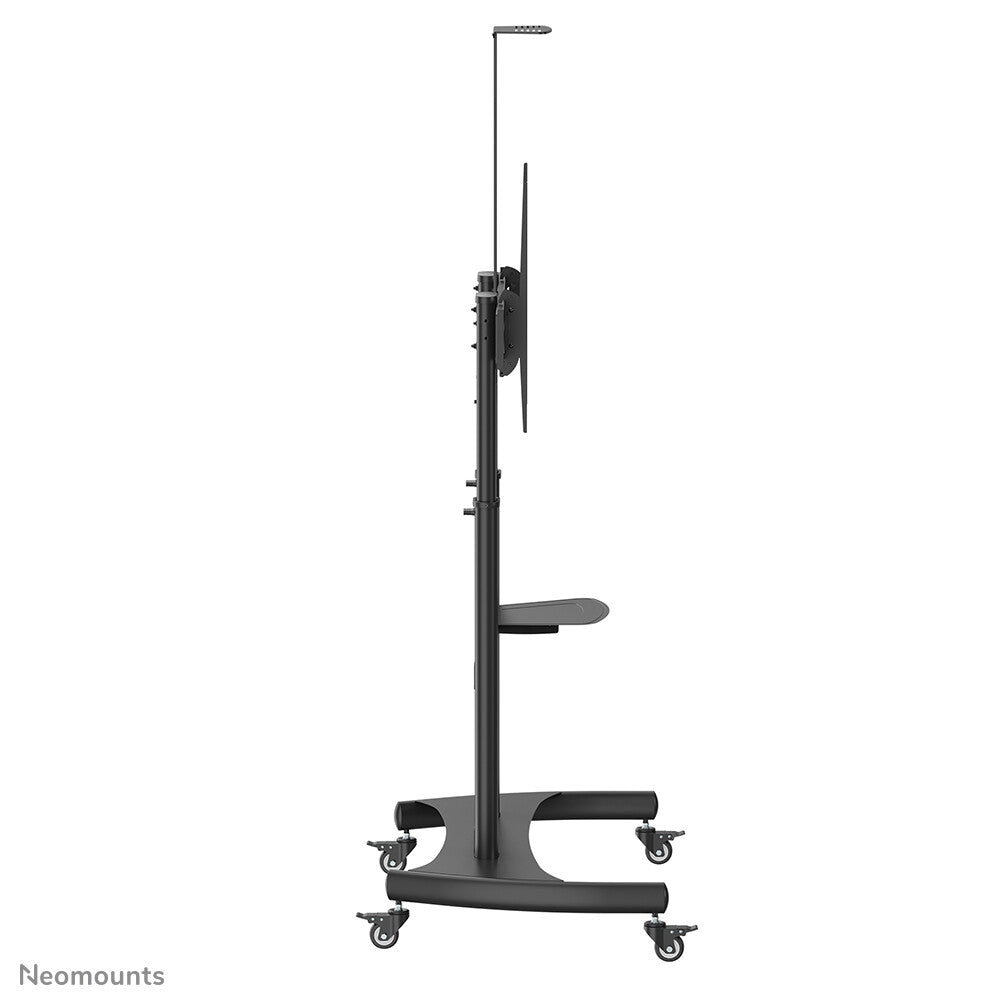

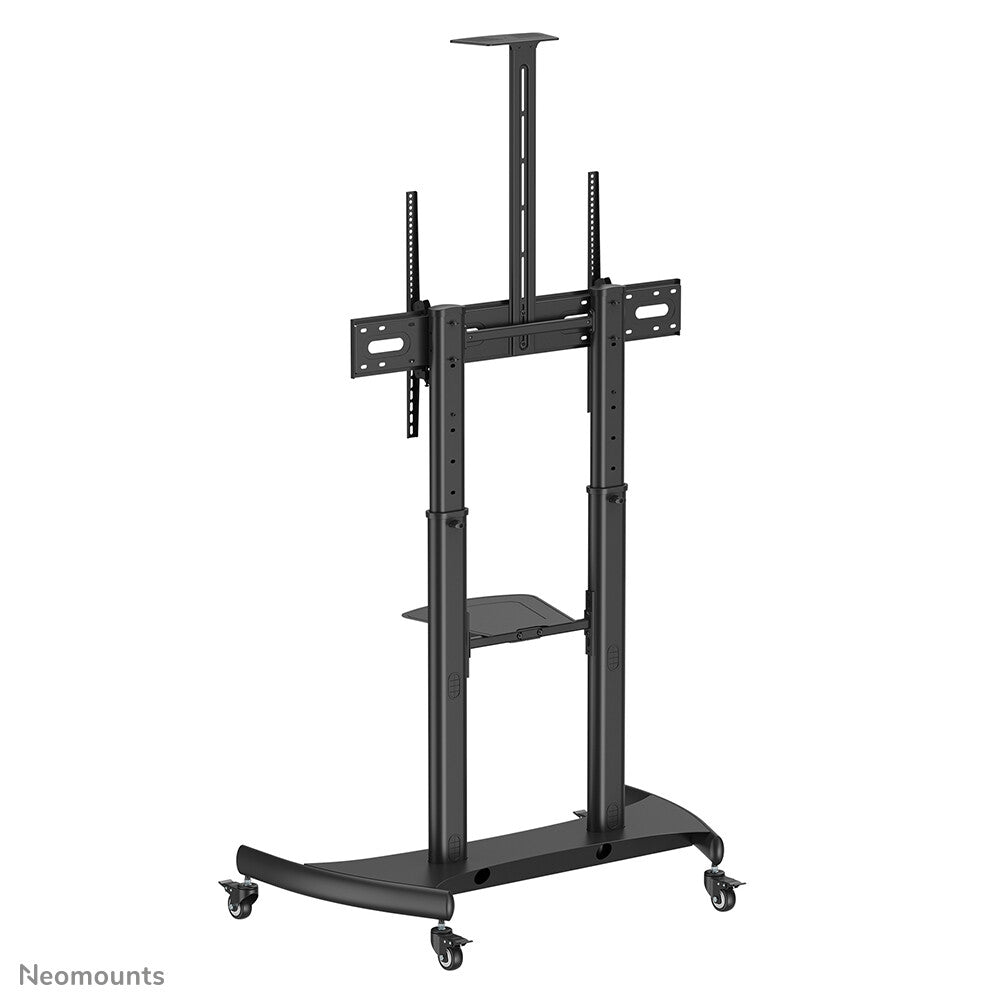

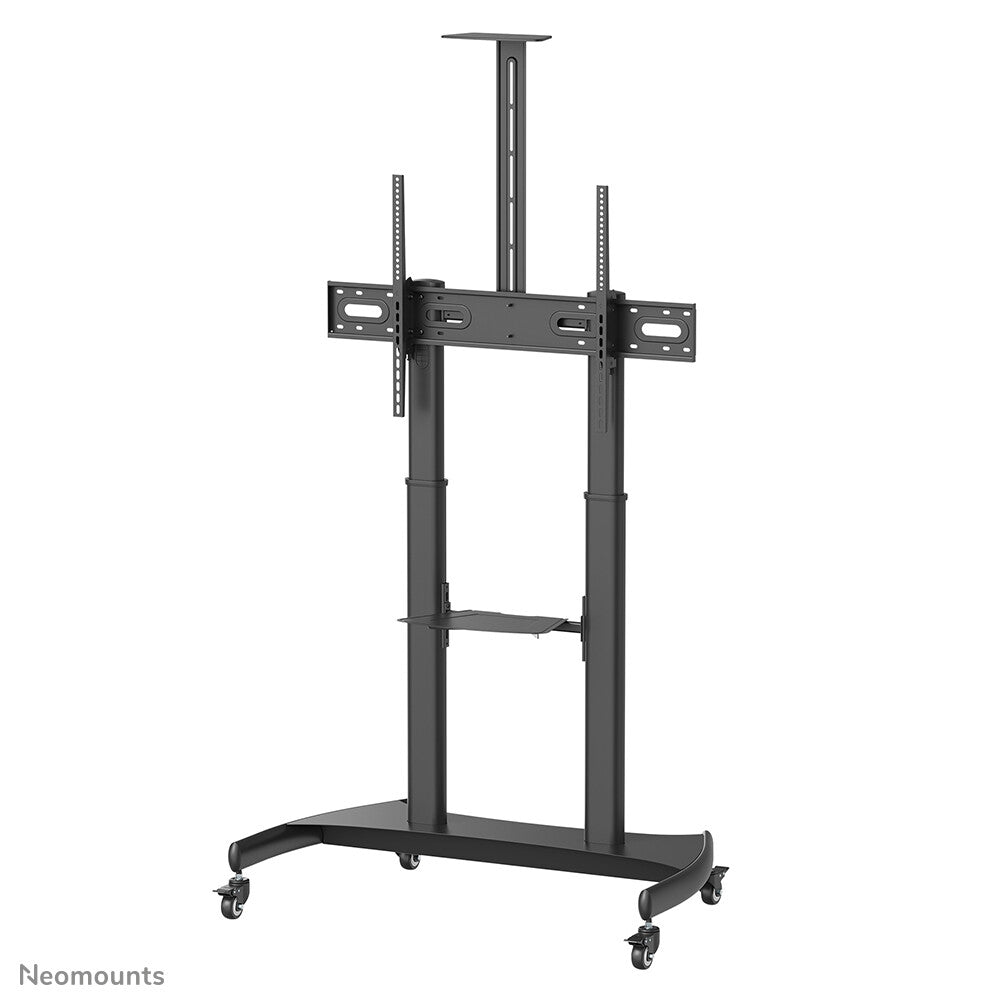

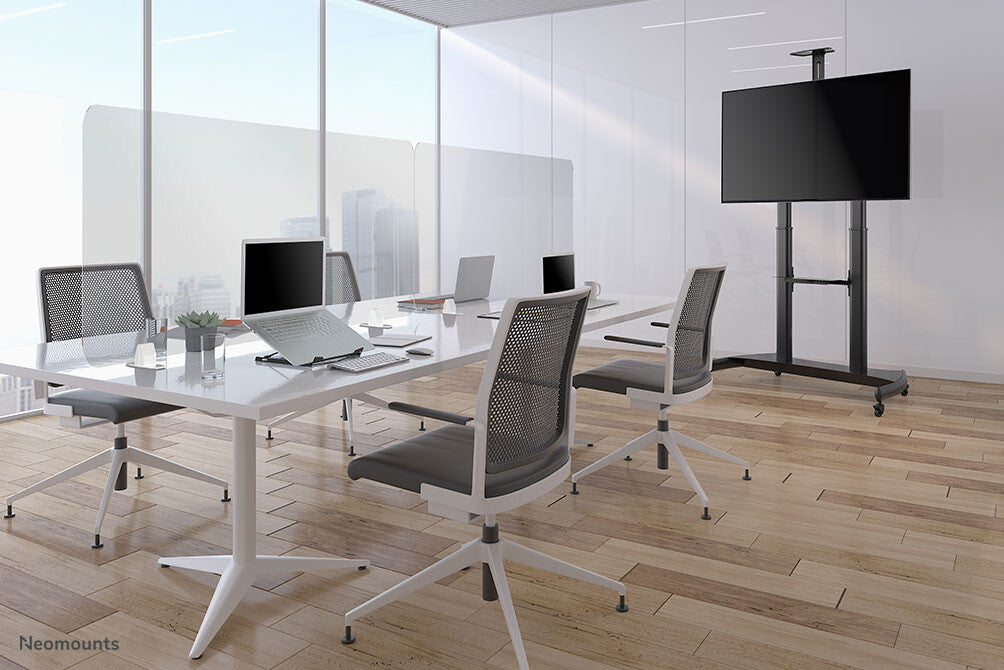

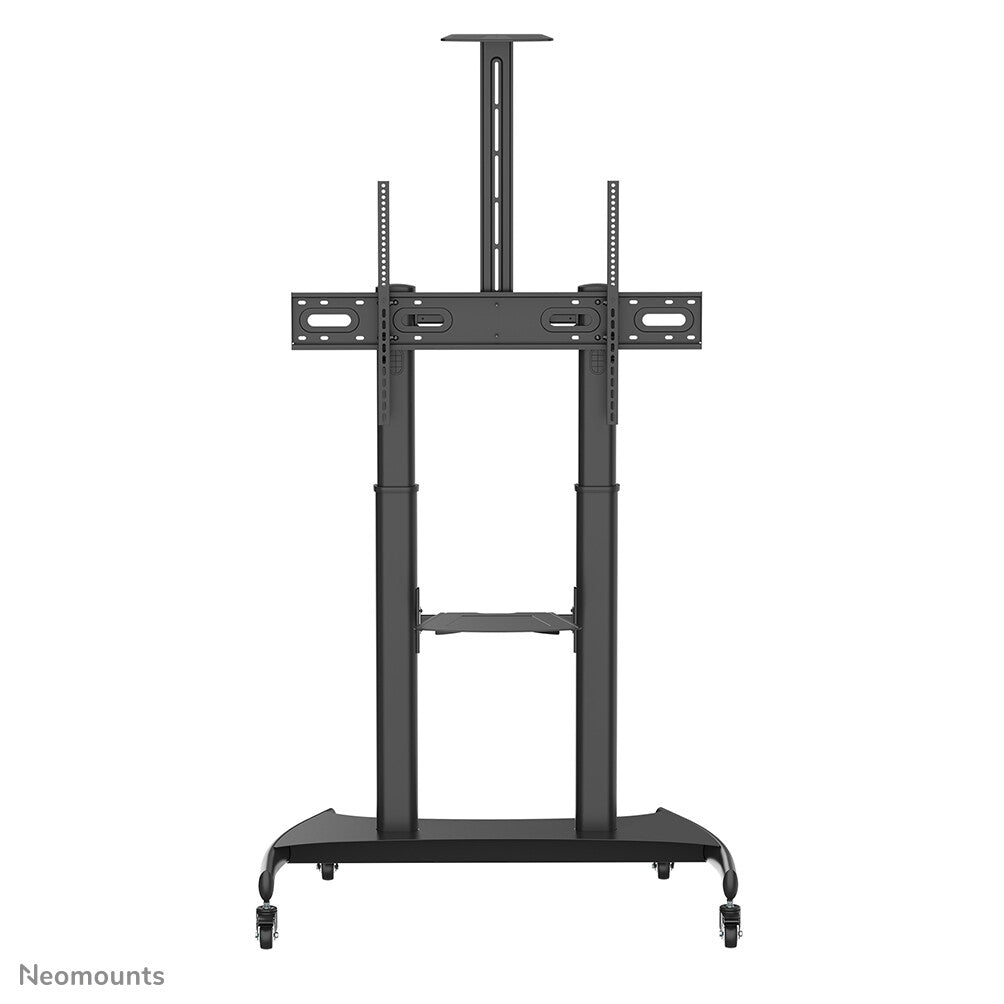

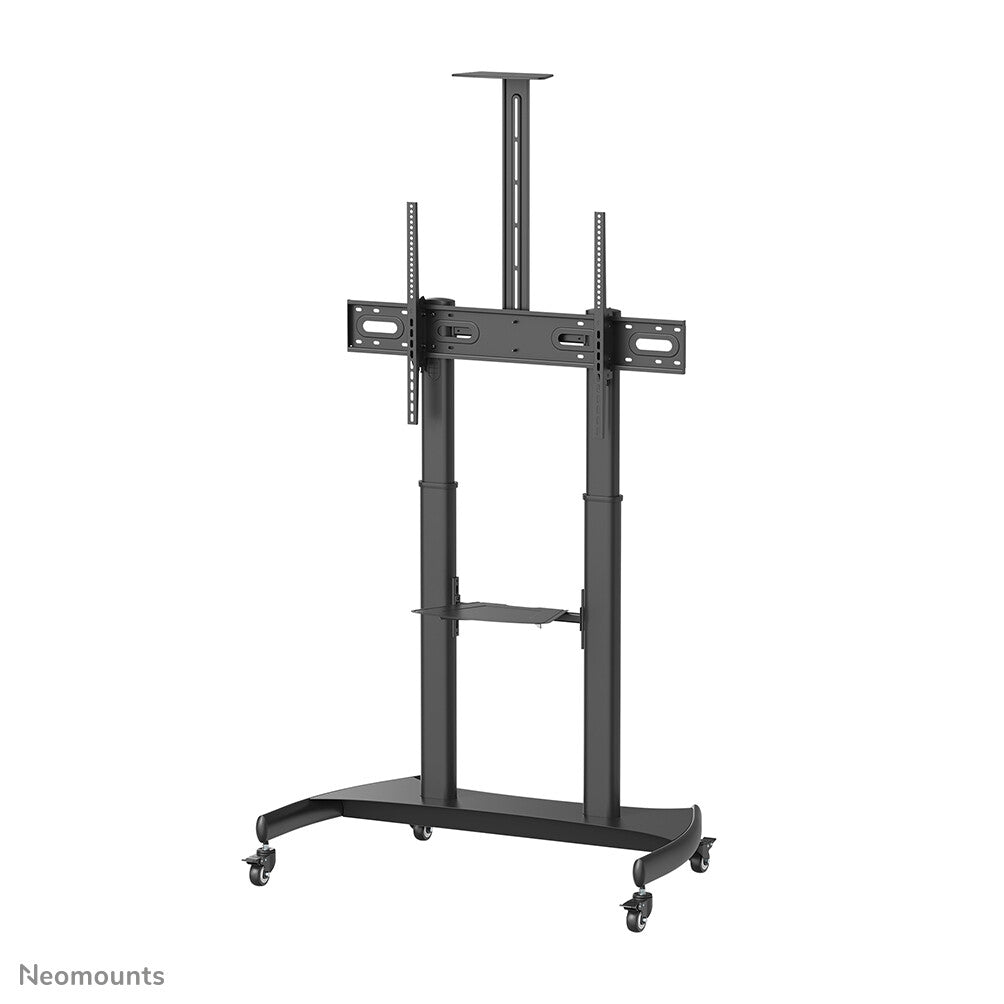

The Neomounts PLASMA-M1950E is a mobile floor stand for screens up to 100" and a weight capacity of 100 kg. This trolley allows you to use a large display over multiple rooms. Enjoy the optimal viewing positioning for both standing and seated audiences, wherever you like.

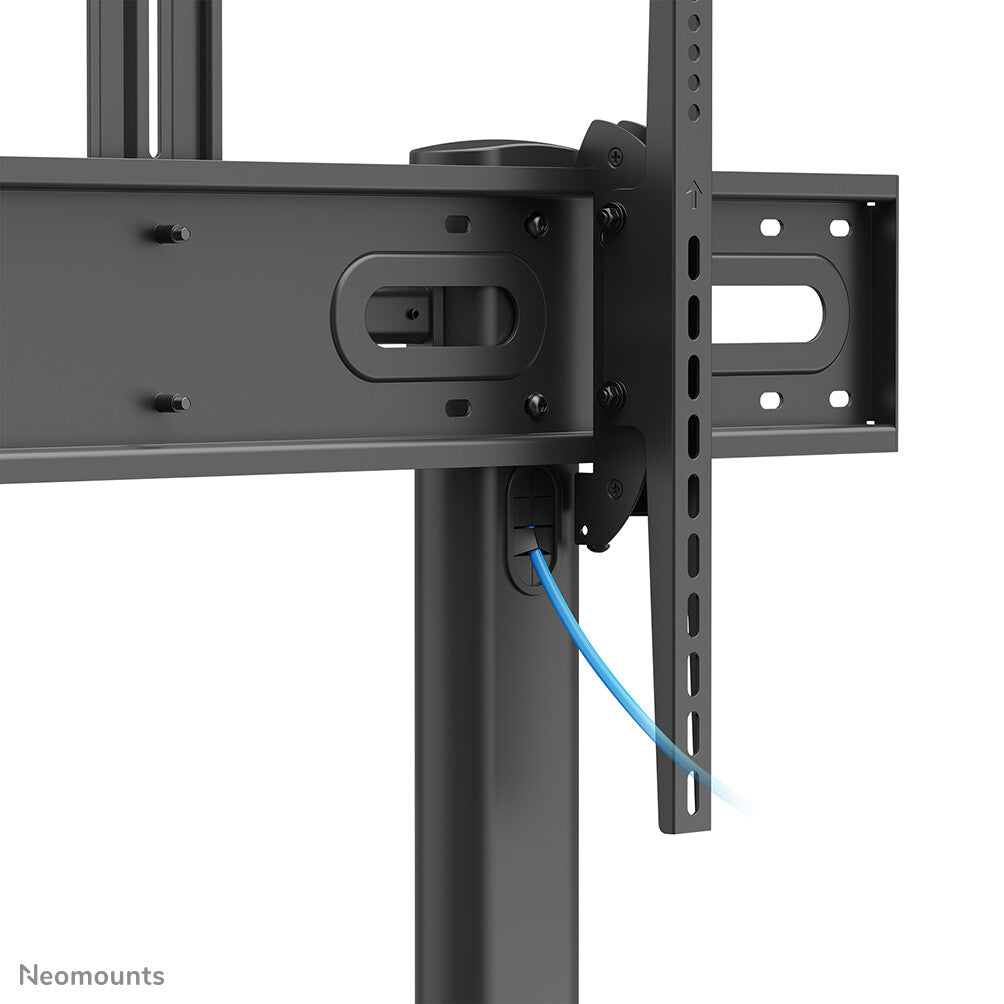

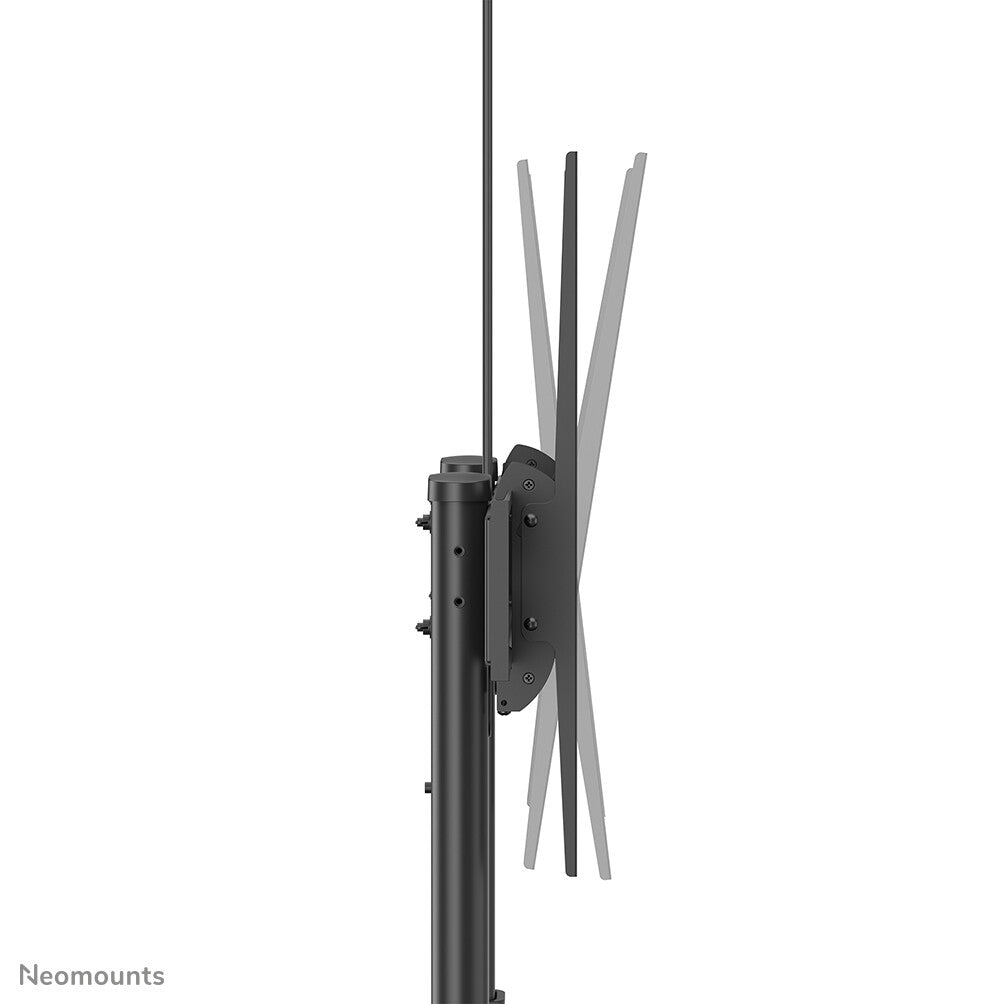

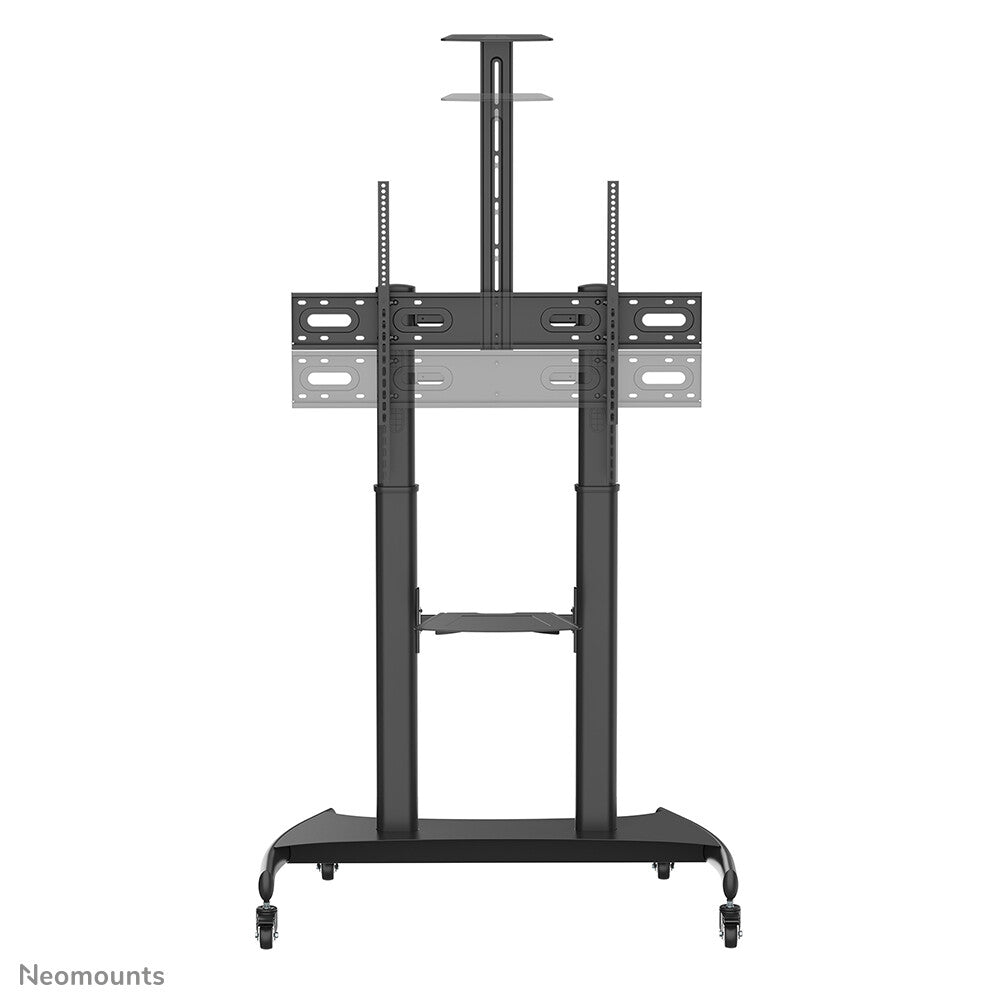

The versatile tilt (15°) technology allows the trolley to change to any desired viewing angle to fully benefit from the capabilities of the screen. The mount is manually adjustable in height from 134 to 166 cm, while the practical cable management conceals and routes cables from screen to floor.

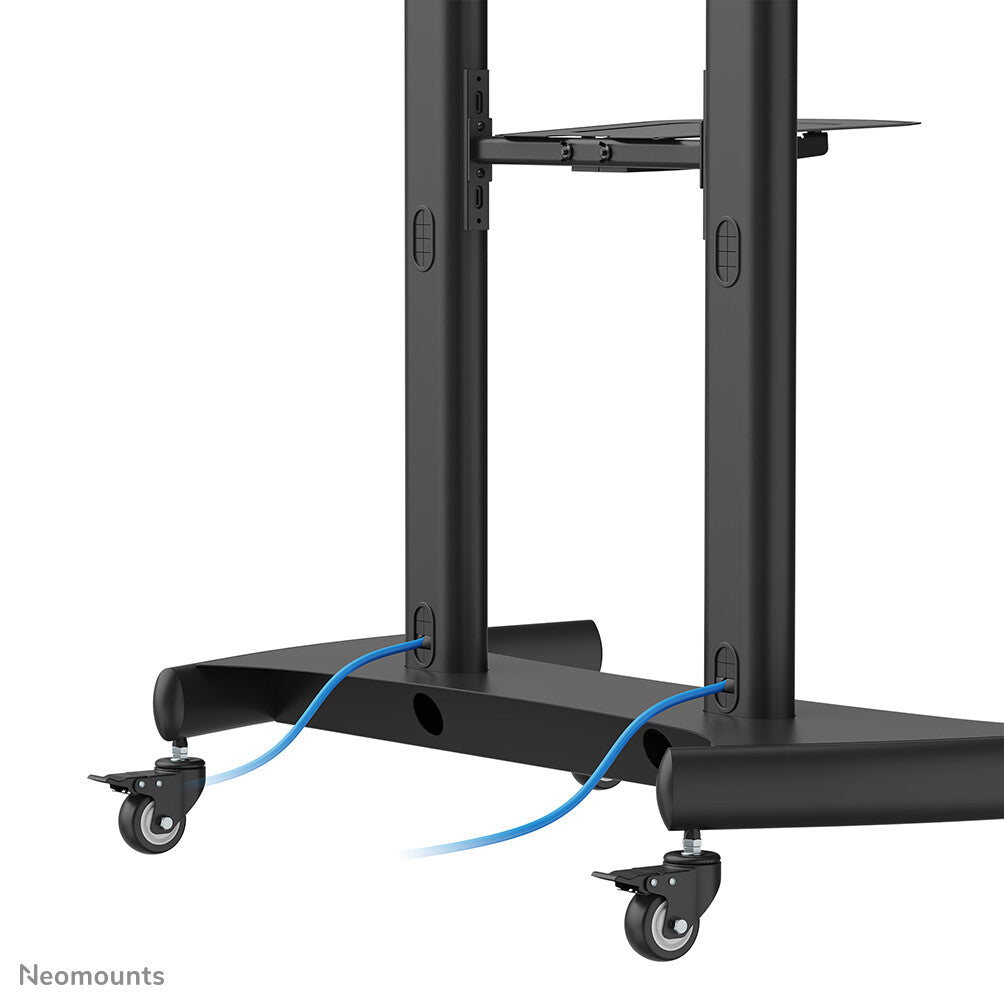

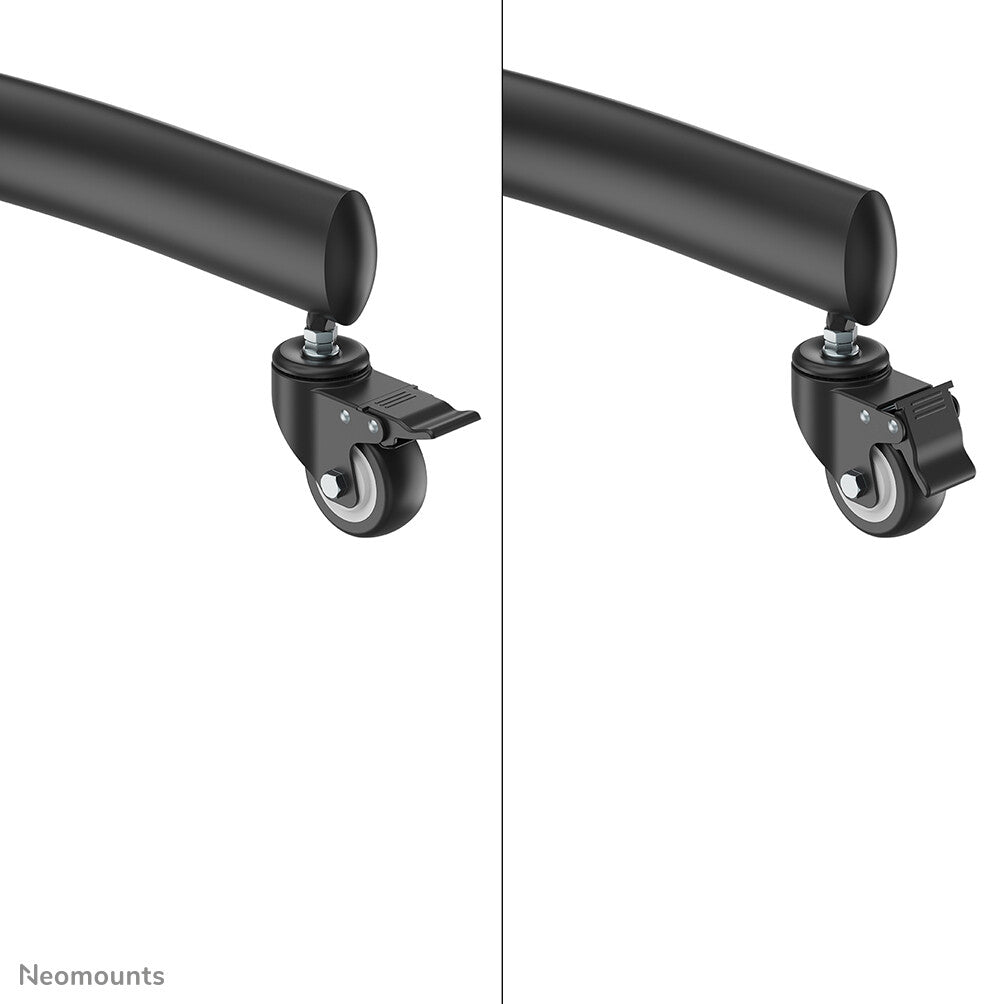

The PLASMA-M1950E features four solid castor wheels with brake to easily move it to another location. Installation is easy and can be done quickly.
Mounting | |
---|---|
Number of displays supported | 1 |
Panel mounting interface | 200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,400 x 500,600 x 500,600 x 600,800 x 500,800 x 600,900 x 600,300 x 100,1000 x 400,1000 x 600,350 x 350,400 x 200,500 x 500 |
Maximum VESA mount | 1000 x 600 mm |
Minimum VESA mount | 200 x 200 mm |
Mounting type | Floor |
Maximum screen size | 2.54 m (100") |
Minimum screen size | 152.4 cm (60") |
Maximum weight capacity | 100 kg |
Ergonomics | |
---|---|
Tilt angle | 15° |
Cable management | Yes |

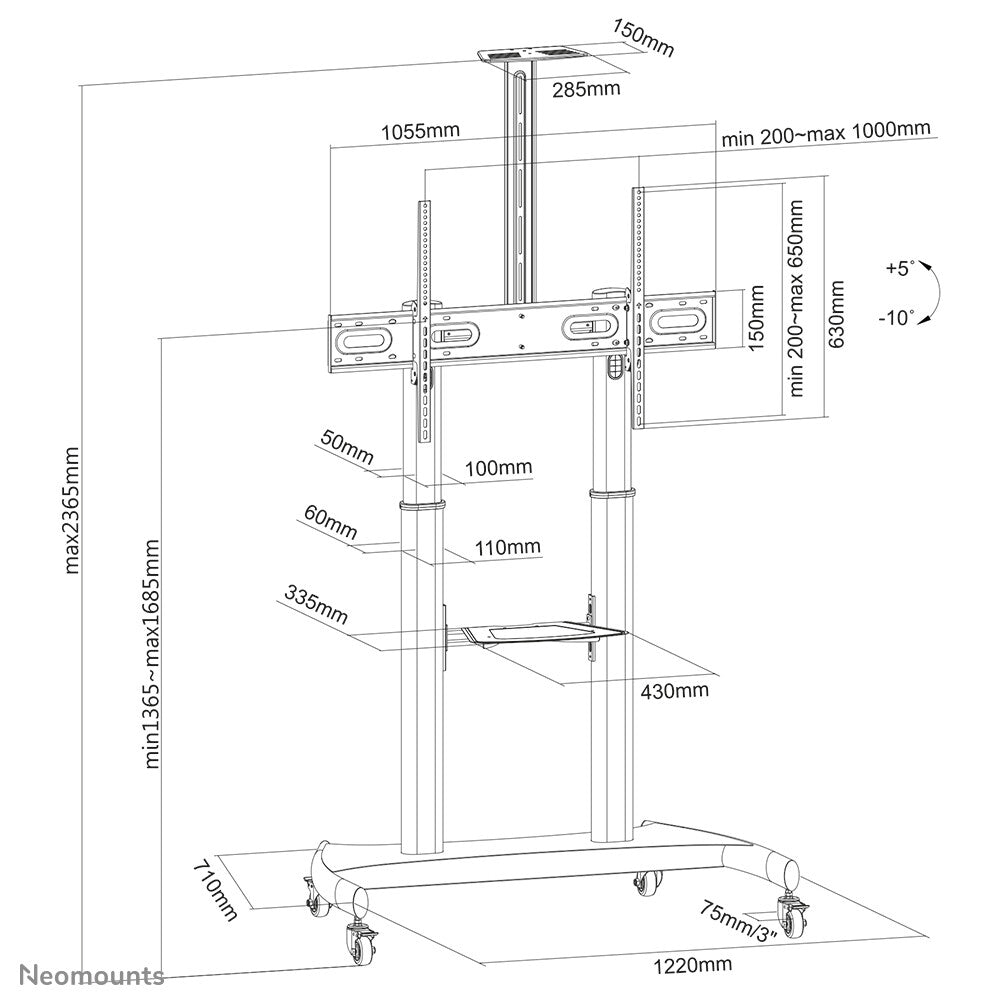

Height adjustment range | 1340 - 1660 mm |
Height adjustment type | Manual |
Design | |
---|---|
Housing material | Steel |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 38.6 kg |
Height | 1660 mm |
Packaging data | |
---|---|
Package weight | 41.8 kg |
Package height | 1305 mm |
Package depth | 805 mm |
Package width | 177 mm |
Technical details | |
---|---|
Package net weight | 41.8 kg |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Products per master (outer) case | 1 pc(s) |
Master (outer) case gross weight | 41.8 kg |
Master (outer) case height | 1305 mm |
Master (outer) case length | 177 mm |
Master (outer) case width | 805 mm |
Master (outer) case net weight | 41.8 kg |
Harmonized System (HS) code | HS7326909890 |
Products per pallet (EU) | 8 pc(s) |
Quantity per master (outer) case | 1 pc(s) |
