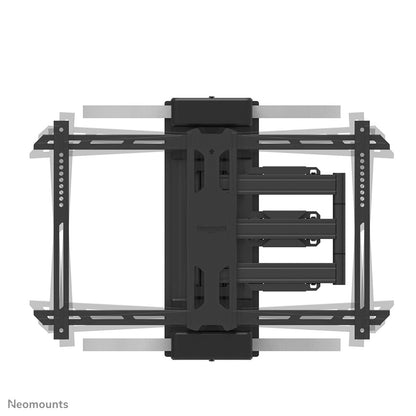

Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm
Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm

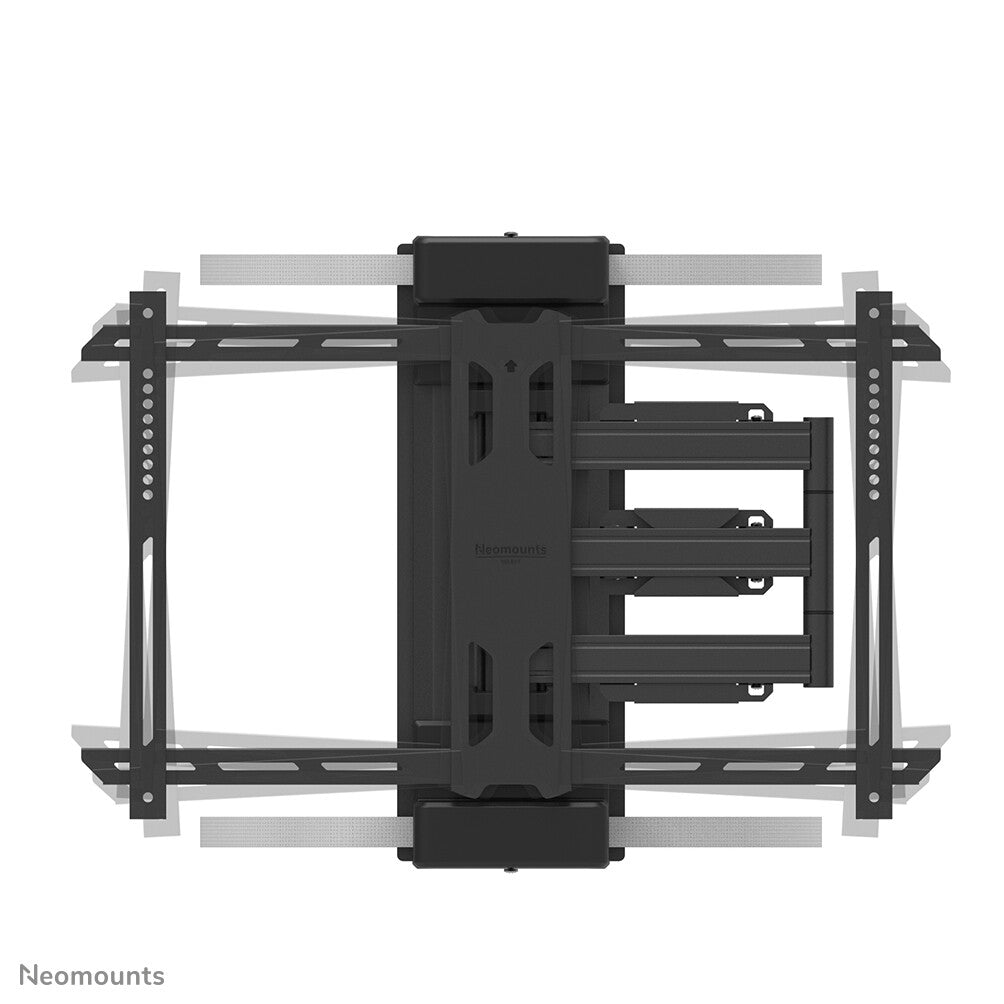

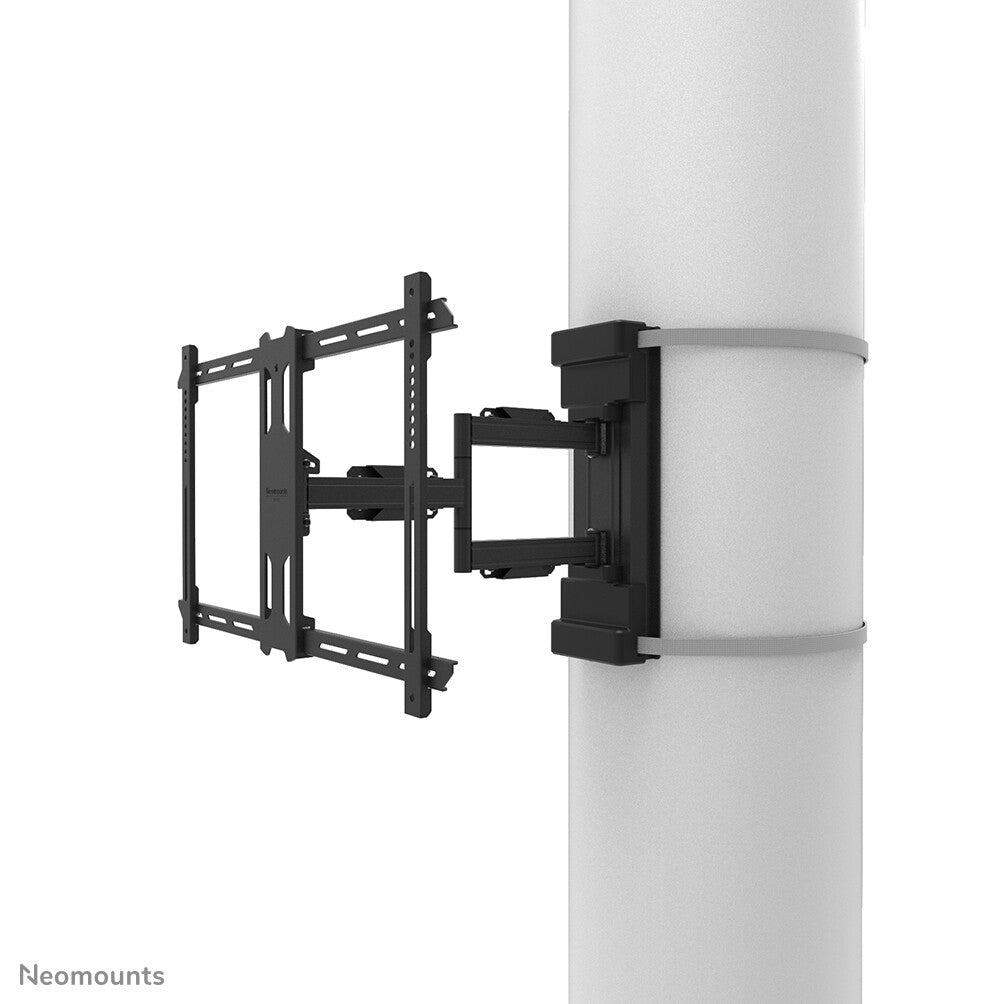

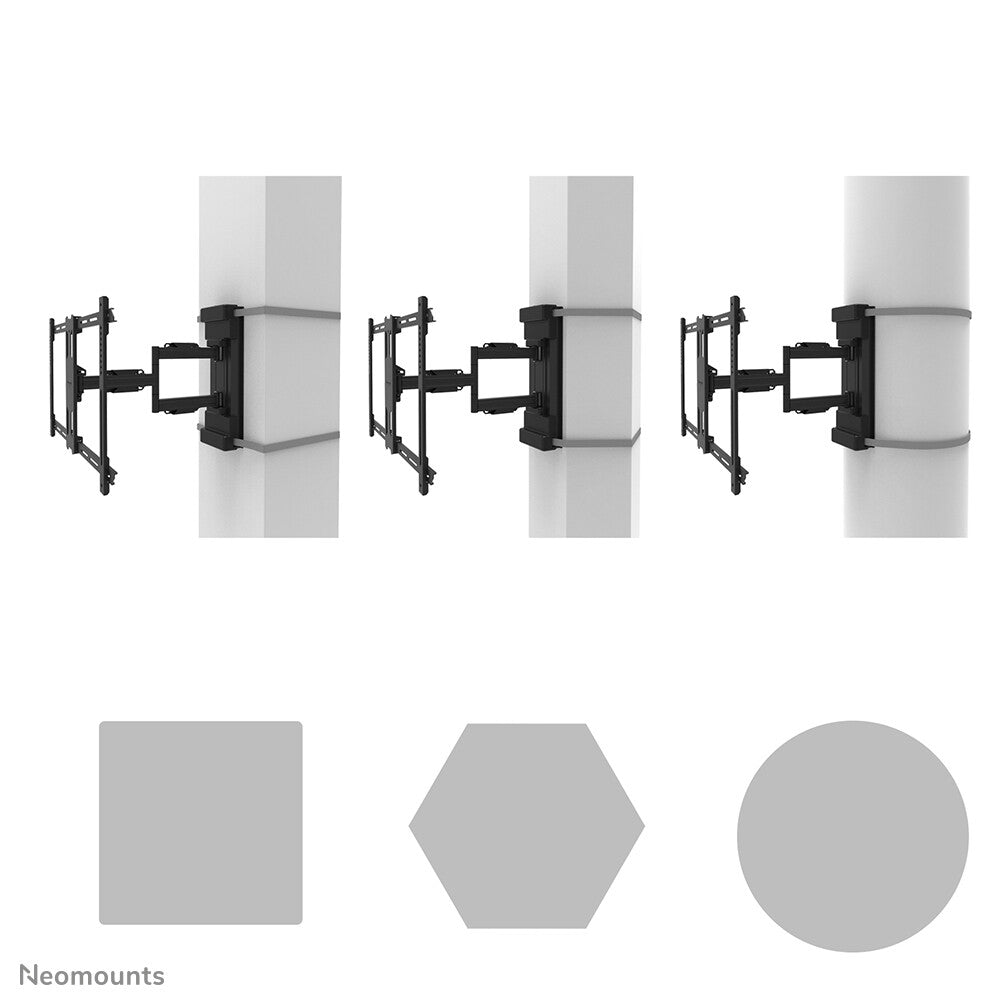

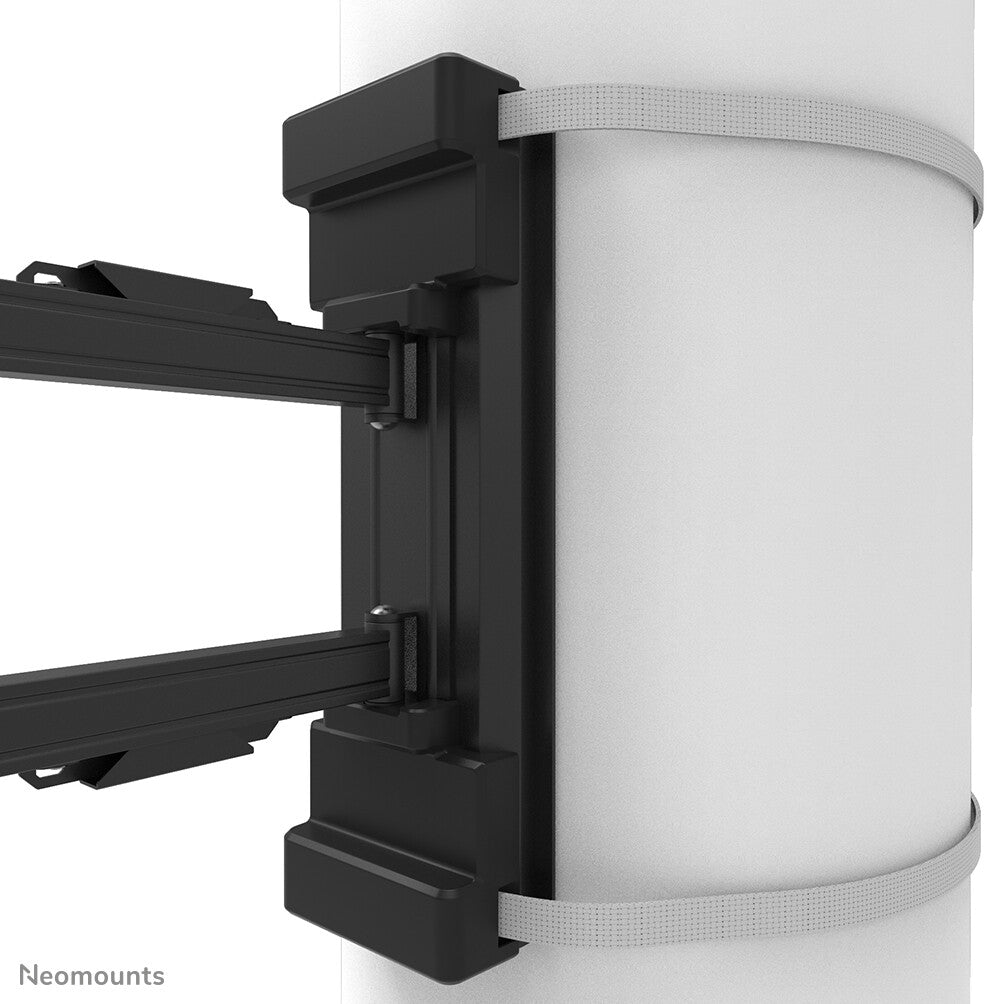

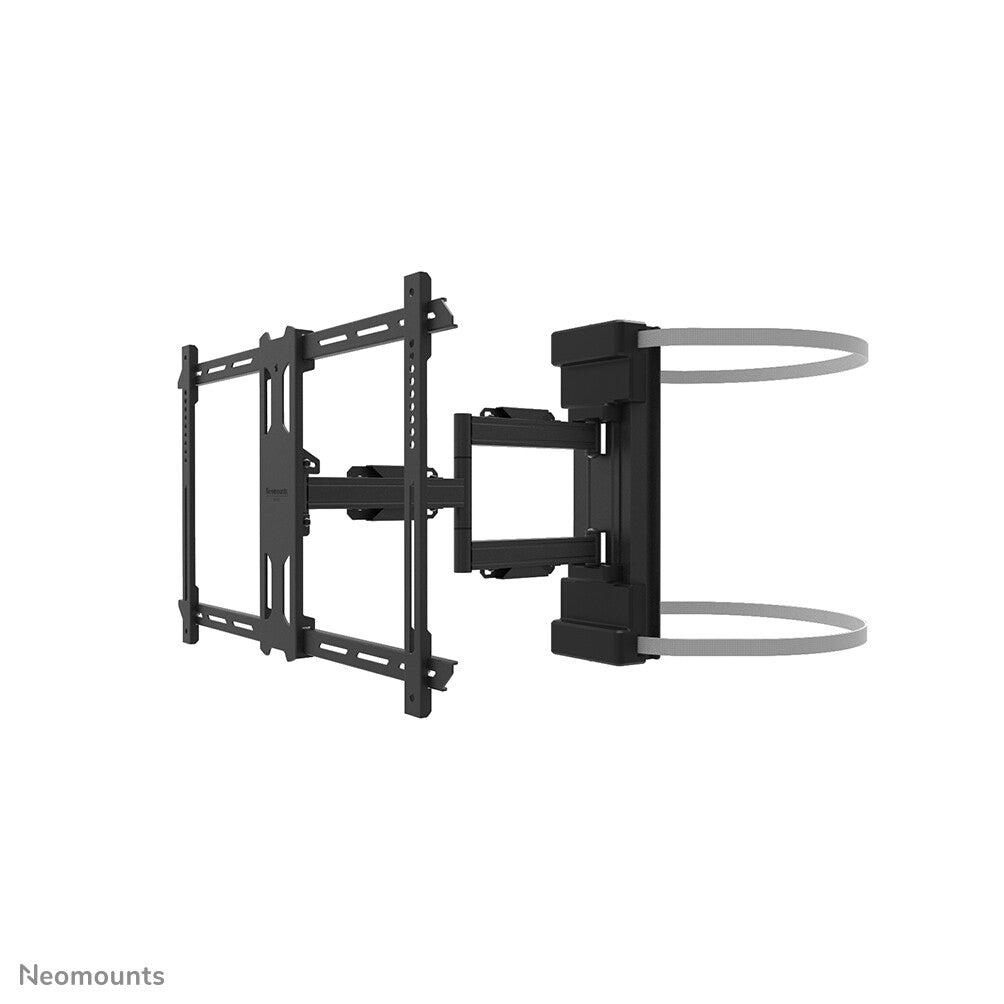

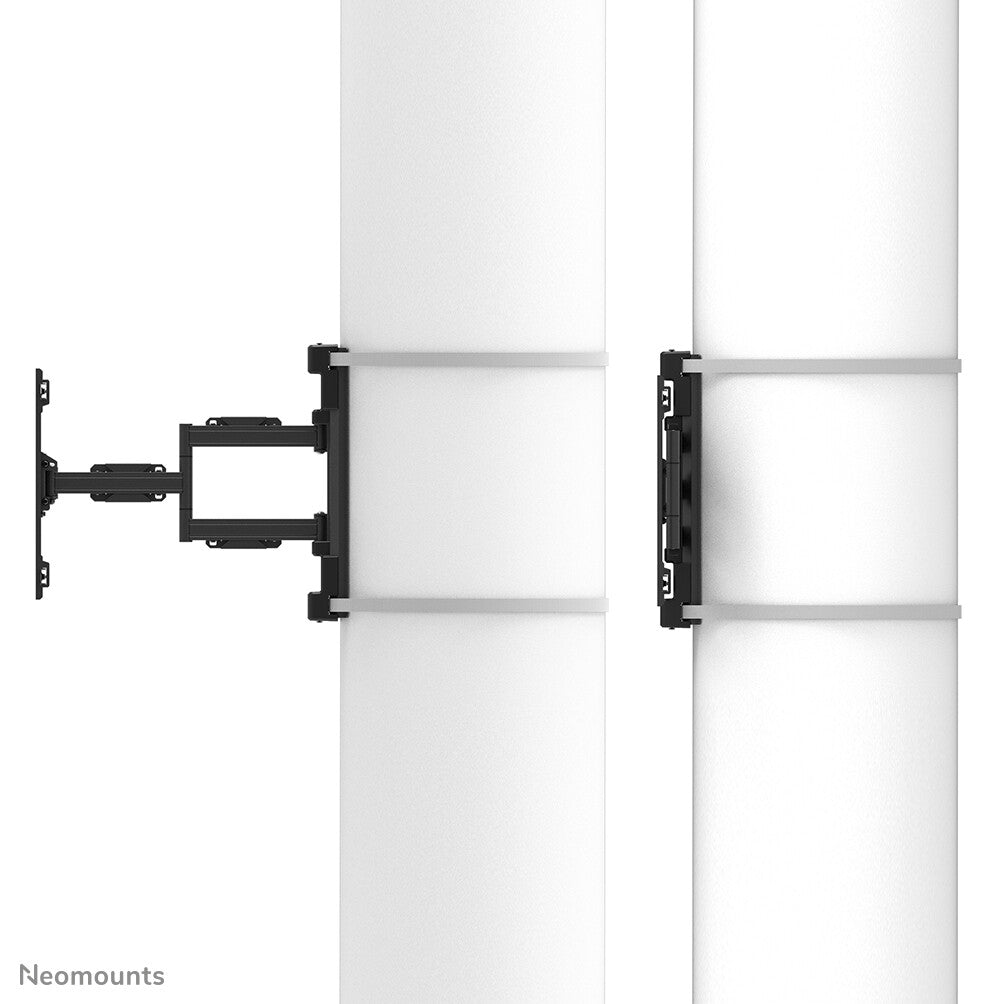

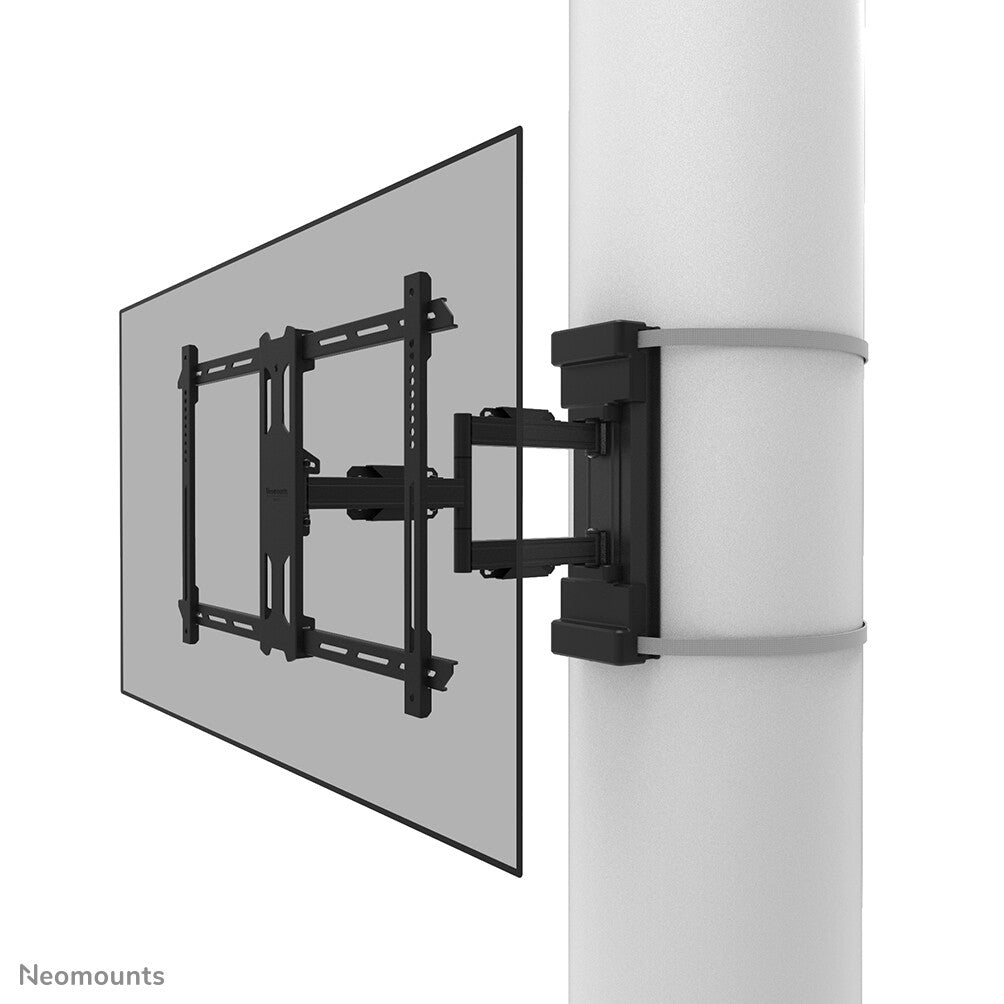

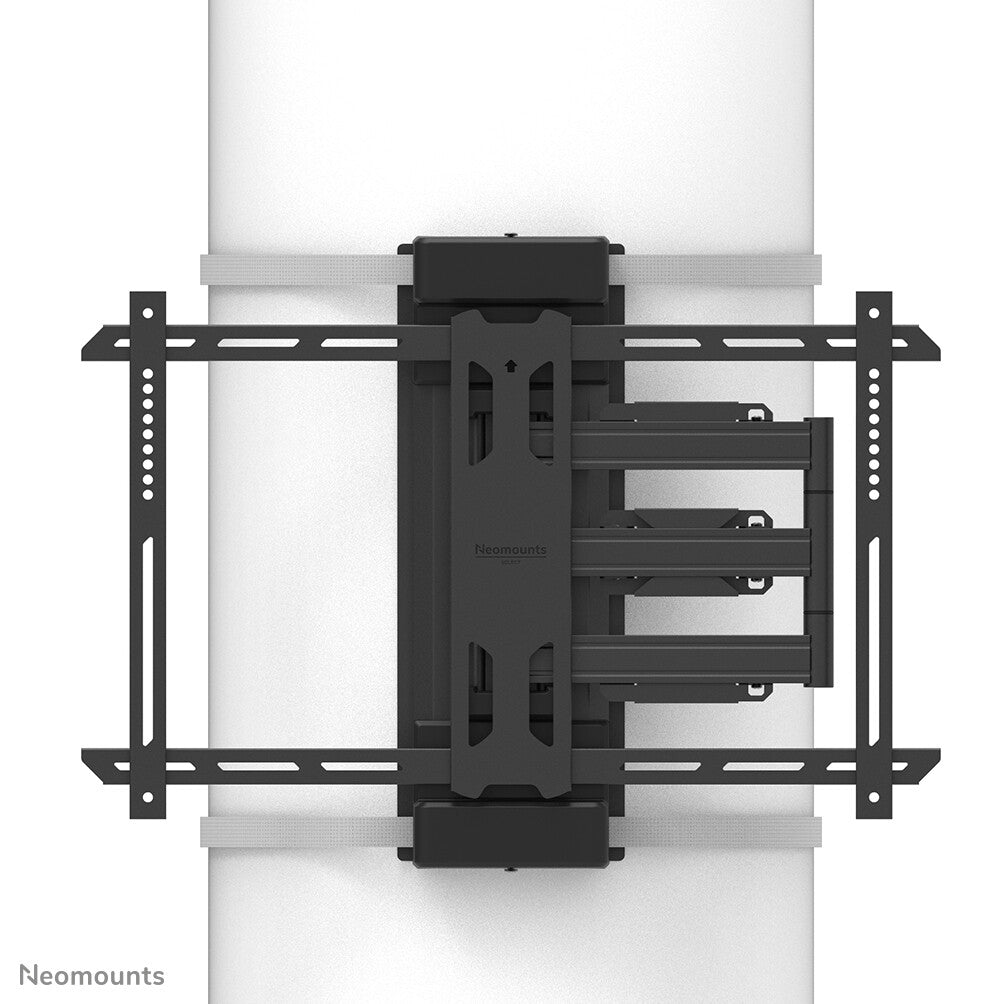

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.

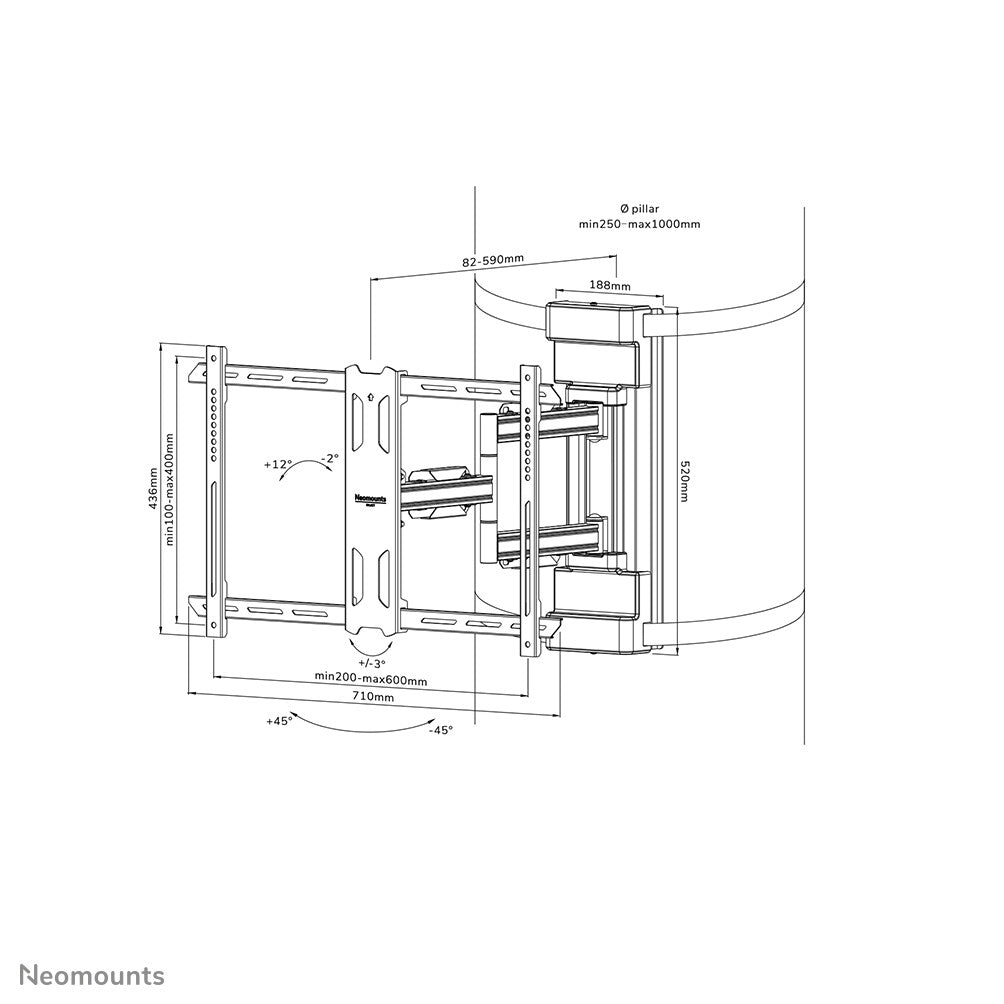

The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.

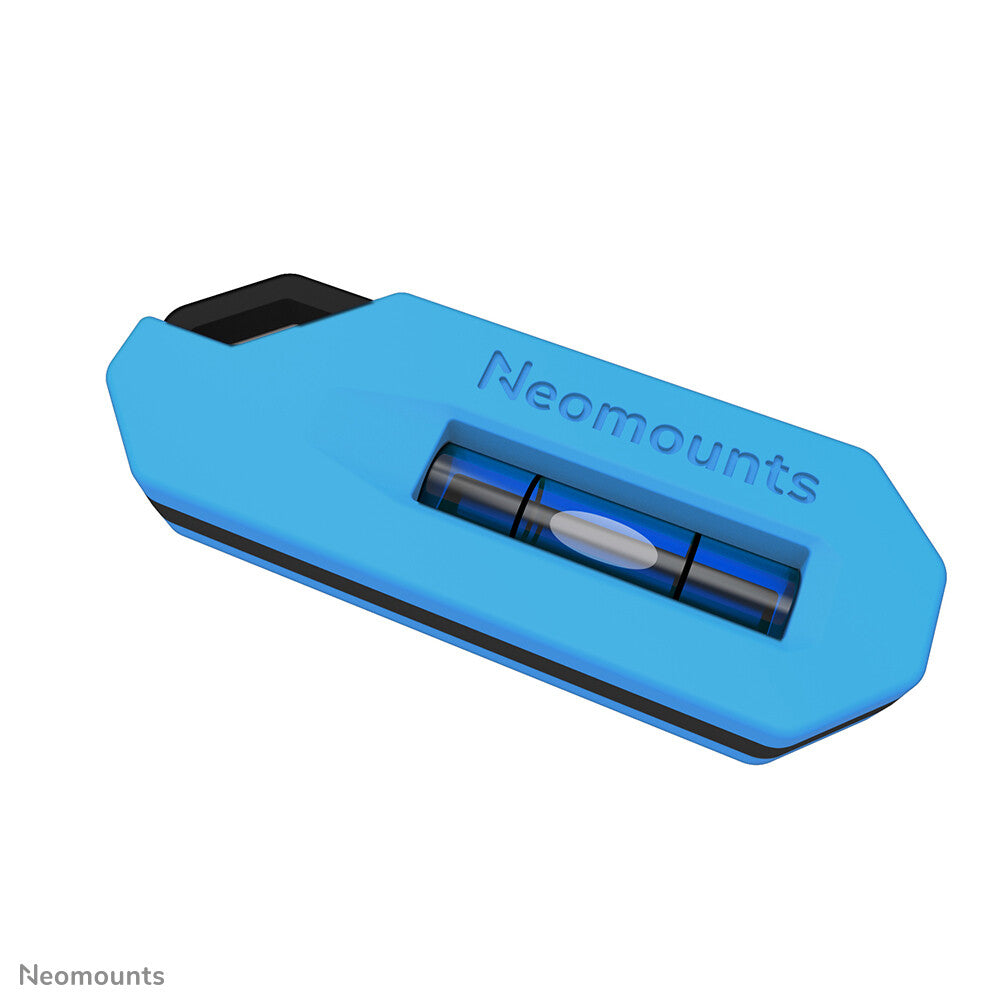

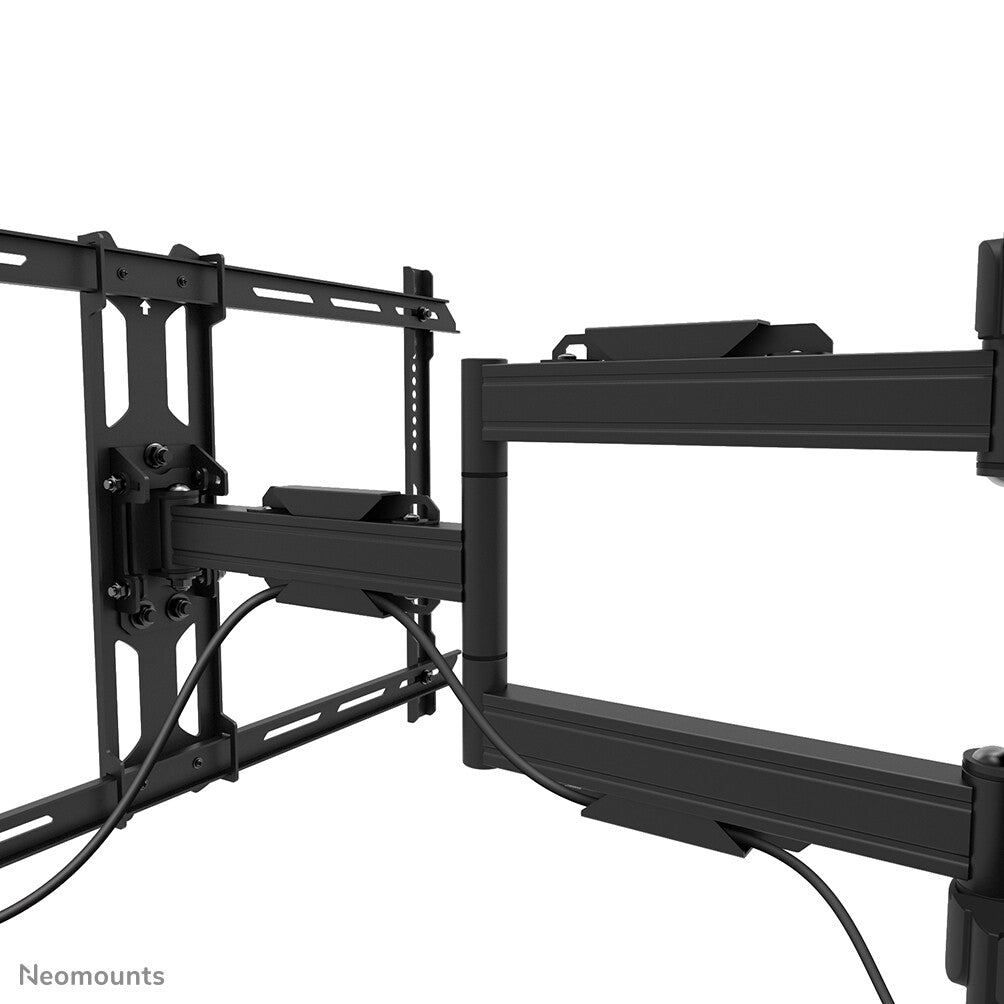

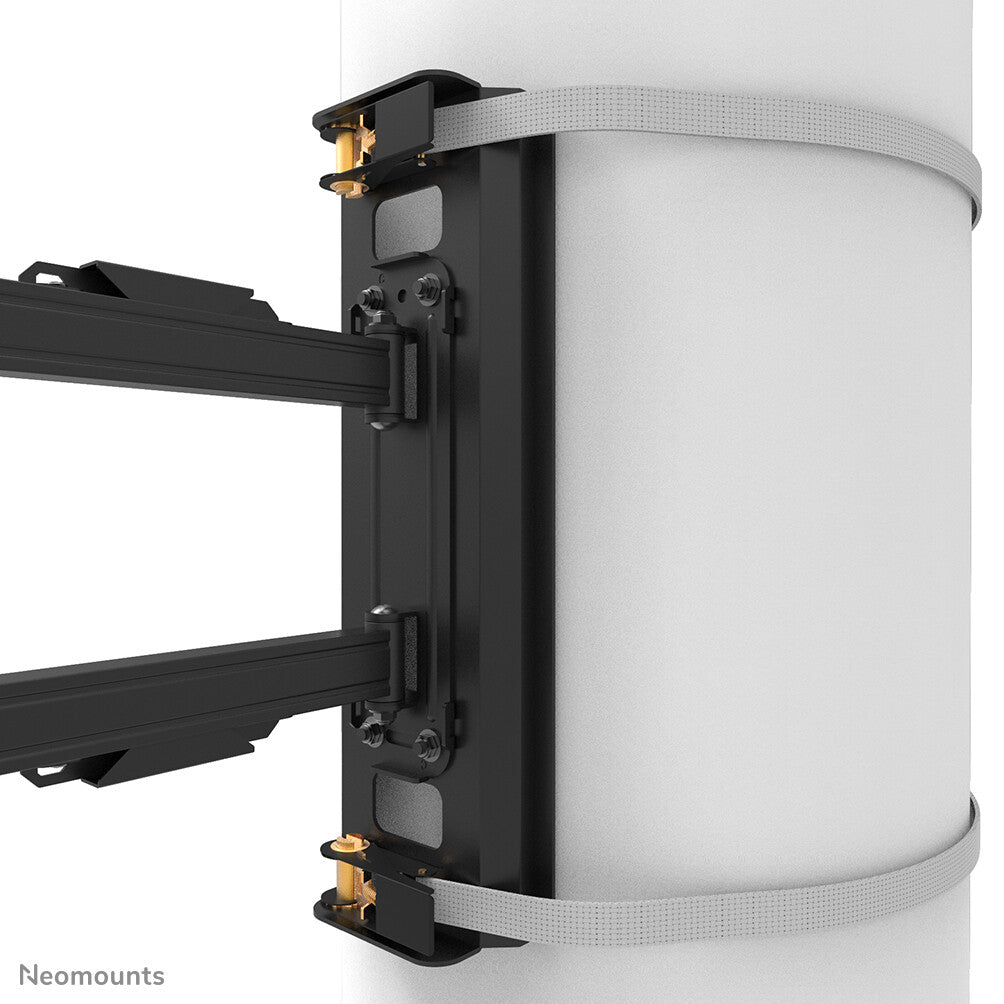

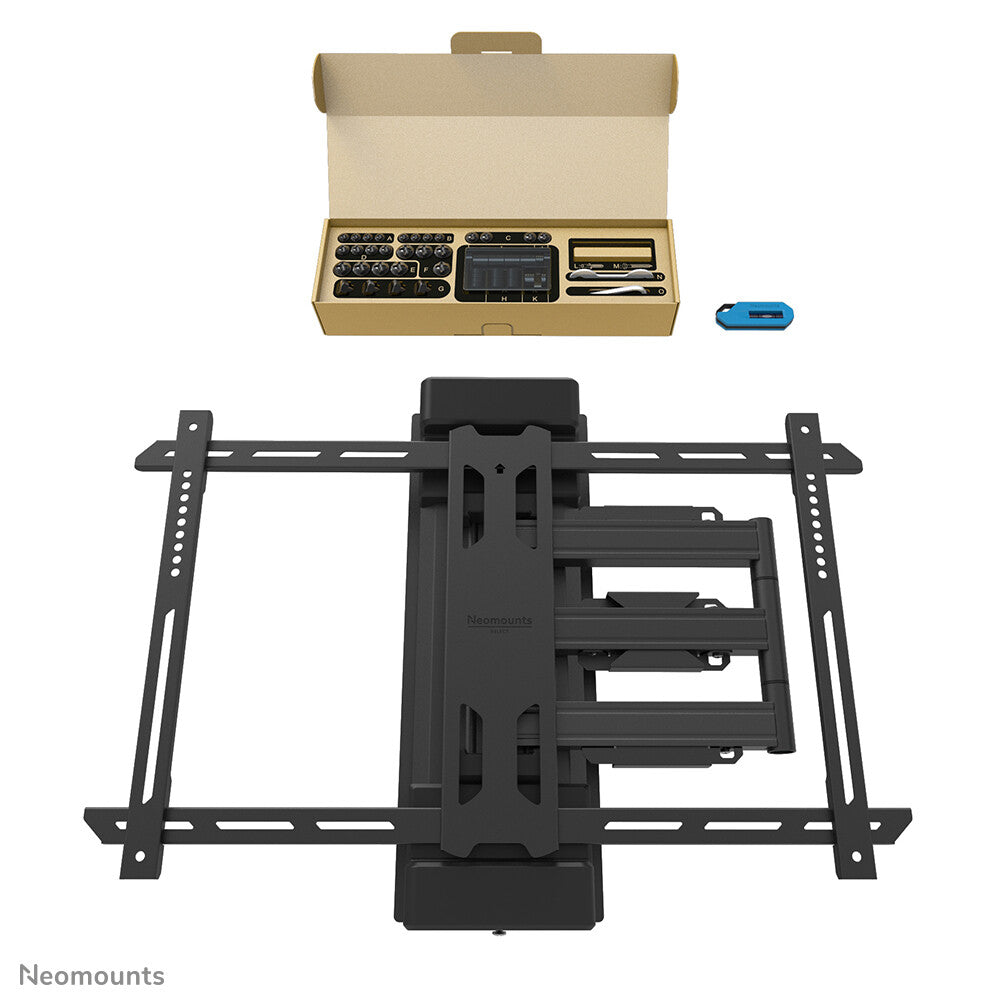

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 100,600 x 400 mm |
| Maximum VESA mount | 600 x 400 mm |
| Minimum VESA mount | 200 x 100 mm |
| Mounting type | Pole |
| Maximum screen size | 177.8 cm (70") |
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 45 kg |
| Maximum weight capacity (per display) | 45 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 59 cm |
| Distance to the wall (min) | 8.2 cm |
| Type | Full motion |
| Cable management | Yes |
| Pivot angle | -3 - 3° |
| Angle of rotation | 6° |
| Rotating | Yes |
| Swivel angle range | -45 - 45° |
| Swivelling | Yes |
| Tilt angle range | -2 - 12° |
| Tilt adjustment | Yes |
| Adjustable depth | Yes |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | Black |
| Technical details | |
|---|---|
| Package net weight | 11.1 kg |
| Lockable | Not lockable |
| Country of origin | China |
| Compatible pole diameter (min) | 25 cm |
| Compatible pole diameter (max) | 100 cm |
| Warranty period | 5 year(s) |
| Packaging content | |
|---|---|

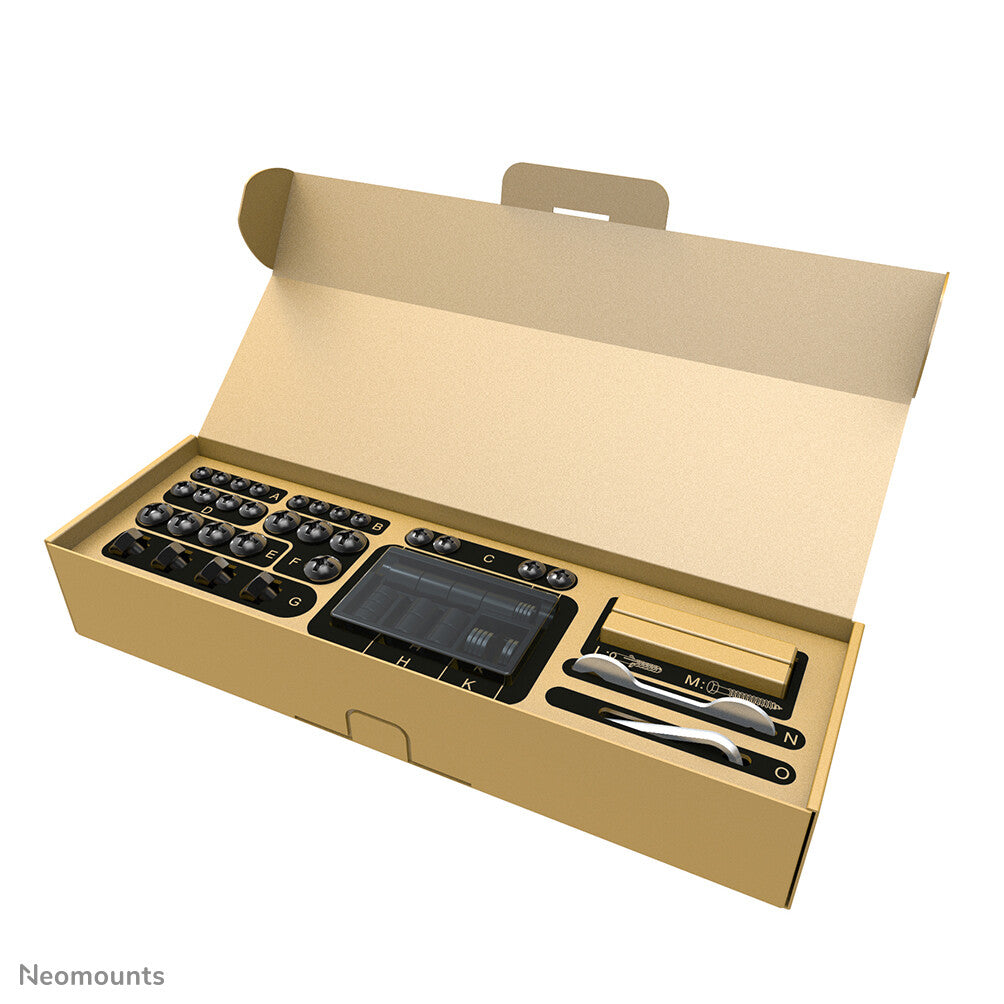

| Mounting kit | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 9.5 kg |
| Height | 520 mm |
| Depth (max) | 59 cm |
| Depth (min) | 8.2 cm |
| Depth | 590 mm |
| Width | 710 mm |
| Packaging data | |
|---|---|
| Package weight | 11.1 kg |
| Package height | 744 mm |
| Package depth | 95 mm |
| Package width | 386 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 34 pc(s) |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 22.8 kg |
| Master (outer) case net weight | 19 kg |
| Master (outer) case height | 764 mm |
| Master (outer) case length | 406 mm |
| Master (outer) case width | 205 mm |
| Other features | |
|---|---|
| Depth adjustment range | 82 - 590 mm |
Contains N9K06AE, N9K05AE
