Neomounts WL35S-910BL16 TV pillar mount 40-75" - tiltable - lockable - diam. 25-100 cm - portrait
Neomounts WL35S-910BL16 TV pillar mount 40-75" - tiltable - lockable - diam. 25-100 cm - portrait

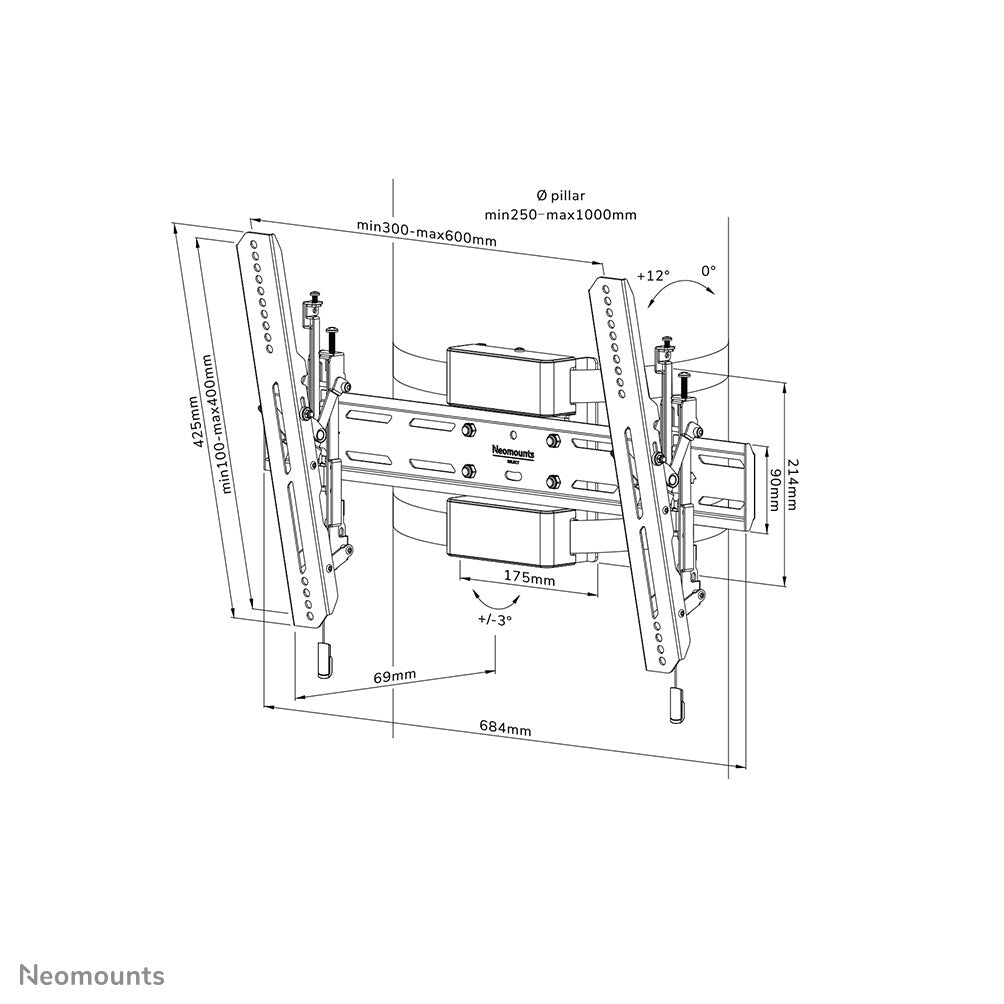

The Neomounts WL35S-910BL16 is a tiltable pillar mount for screens up to 75" with a maximum weight capacity of 50 kg. The versatile tilt (12°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Individual bracket height and level adjustment are available for the perfect installation.
The WL35S-910BL16 has a depth of 6,9 cm and is suitable for screens that meet VESA hole pattern 300x100 to 600x400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 400 x 400,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,300 x 100,350 x 350,400 x 200 |
| Maximum VESA mount | 600 x 400 mm |
| Minimum VESA mount | 300 x 100 mm |
| Mounting type | Pole |
| Maximum screen size | 190.5 cm (75") |
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 50 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 6.9 cm |
| Cable management | No |
| Pivot angle | -3 - 3° |
| Angle of rotation | 6° |
| Tilt angle range | 0 - 12° |
| Tilt adjustment | Yes |
| Design | |
|---|---|
| Accepts padlock | Yes |
| Anti-theft function | Yes |
| Housing material | Steel |
| Product colour | Black |
| Technical details | |
|---|---|
| Package net weight | 5.9 kg |
| Lockable | Security screw included |
| Country of origin | China |
| Compatible pole diameter (min) | 25 cm |
| Compatible pole diameter (max) | 100 cm |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
|---|---|
| Weight | 4.75 kg |
| Height | 425 mm |
| Depth | 69 mm |
| Width | 684 mm |
| Packaging data | |
|---|---|
| Package weight | 5.9 kg |
| Package height | 900 mm |
| Package depth | 74 mm |
| Package width | 237 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | HS7326909890 |
| Products per pallet (EU) | 48 pc(s) |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case gross weight | 23.9 kg |
| Master (outer) case net weight | 19 kg |
| Master (outer) case height | 920 mm |
| Master (outer) case length | 258 mm |
| Master (outer) case width | 315 mm |
Contains N9K06AE, N9K05AE
