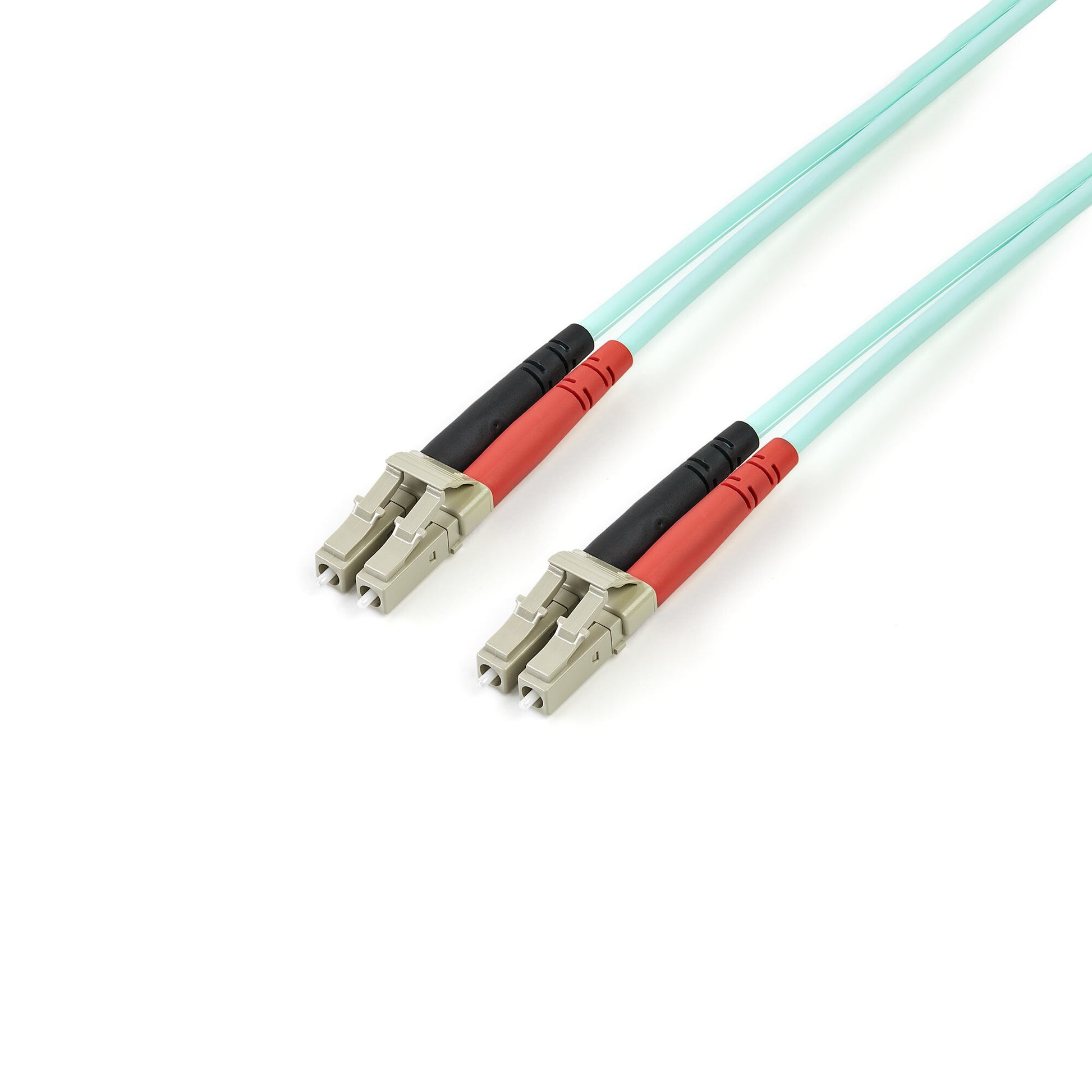

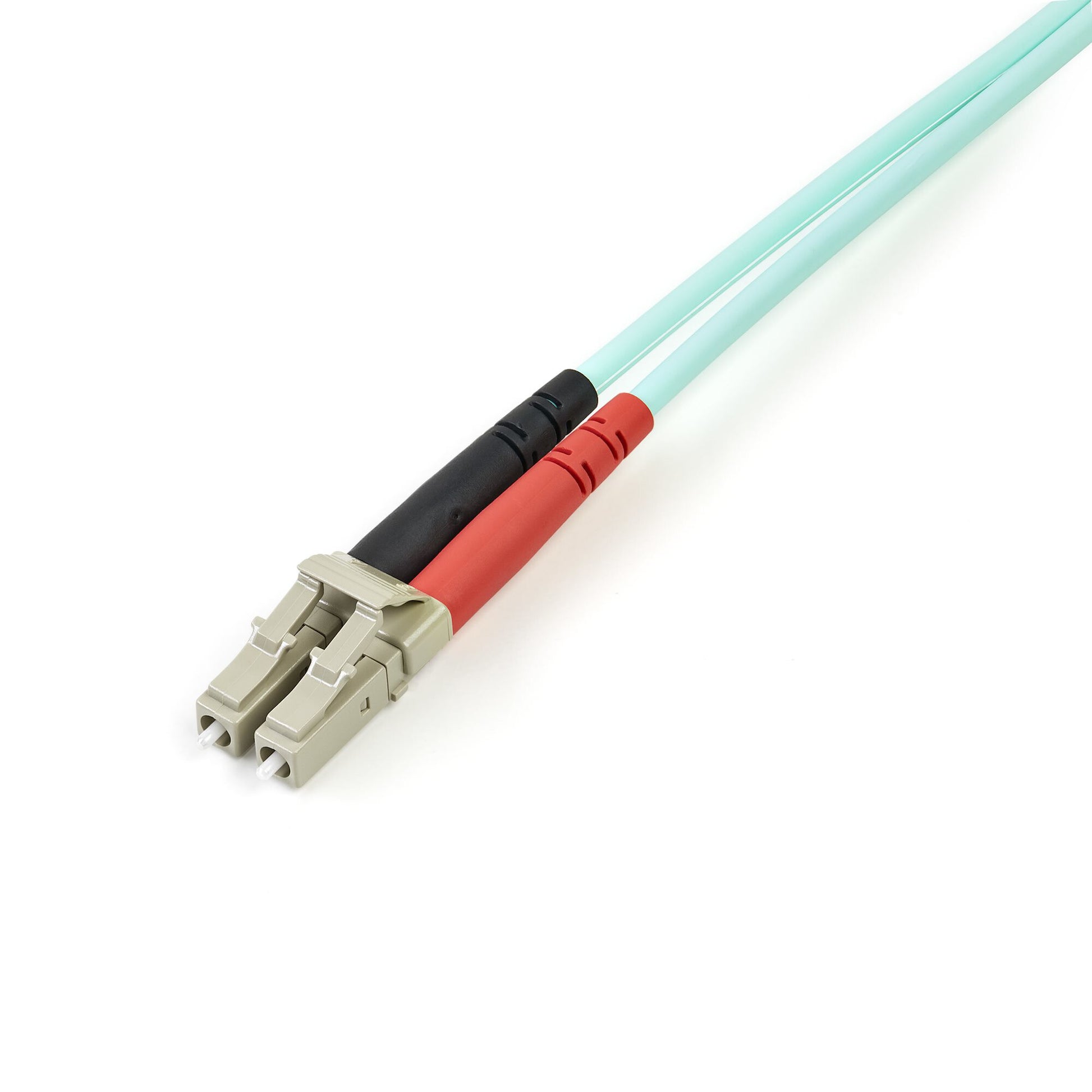

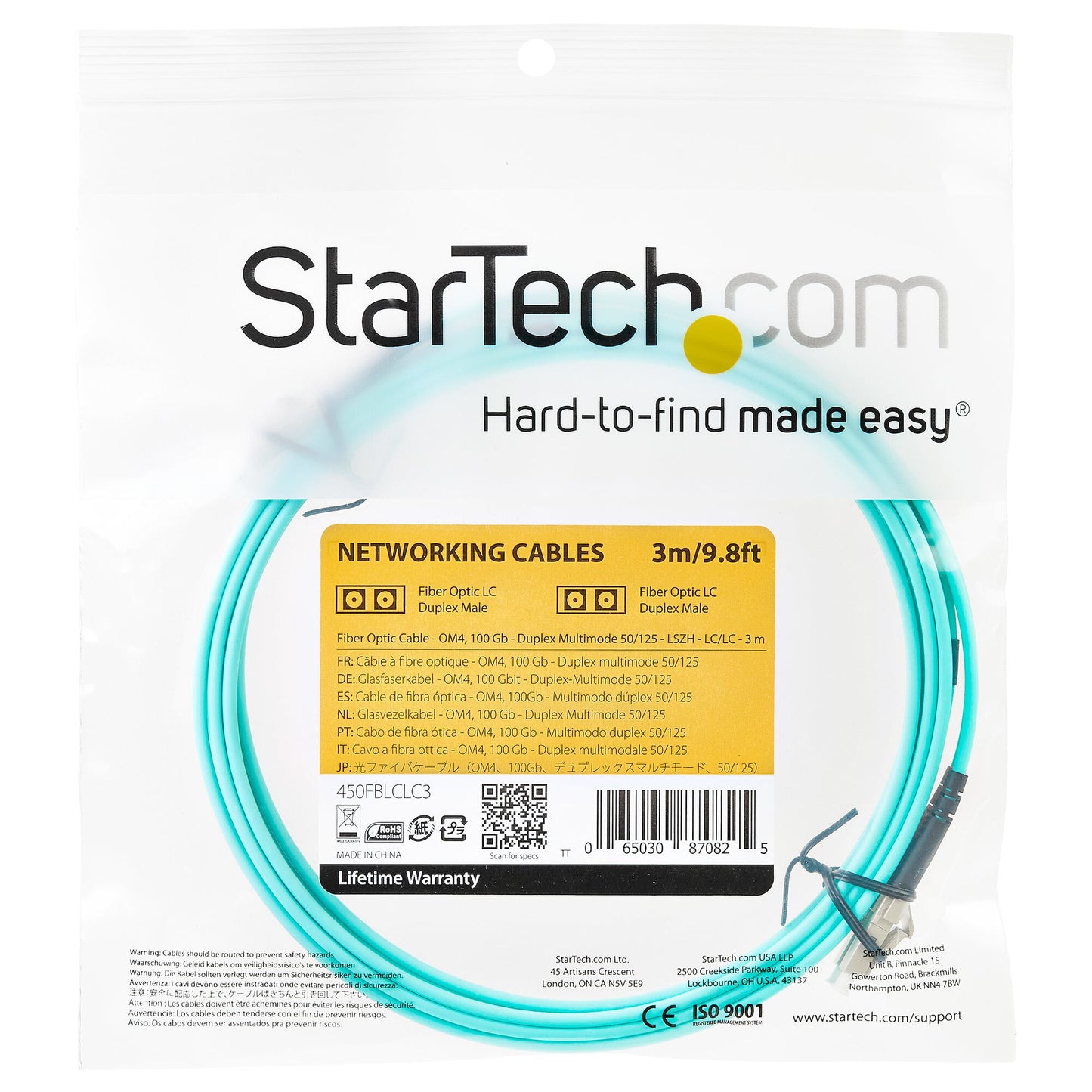

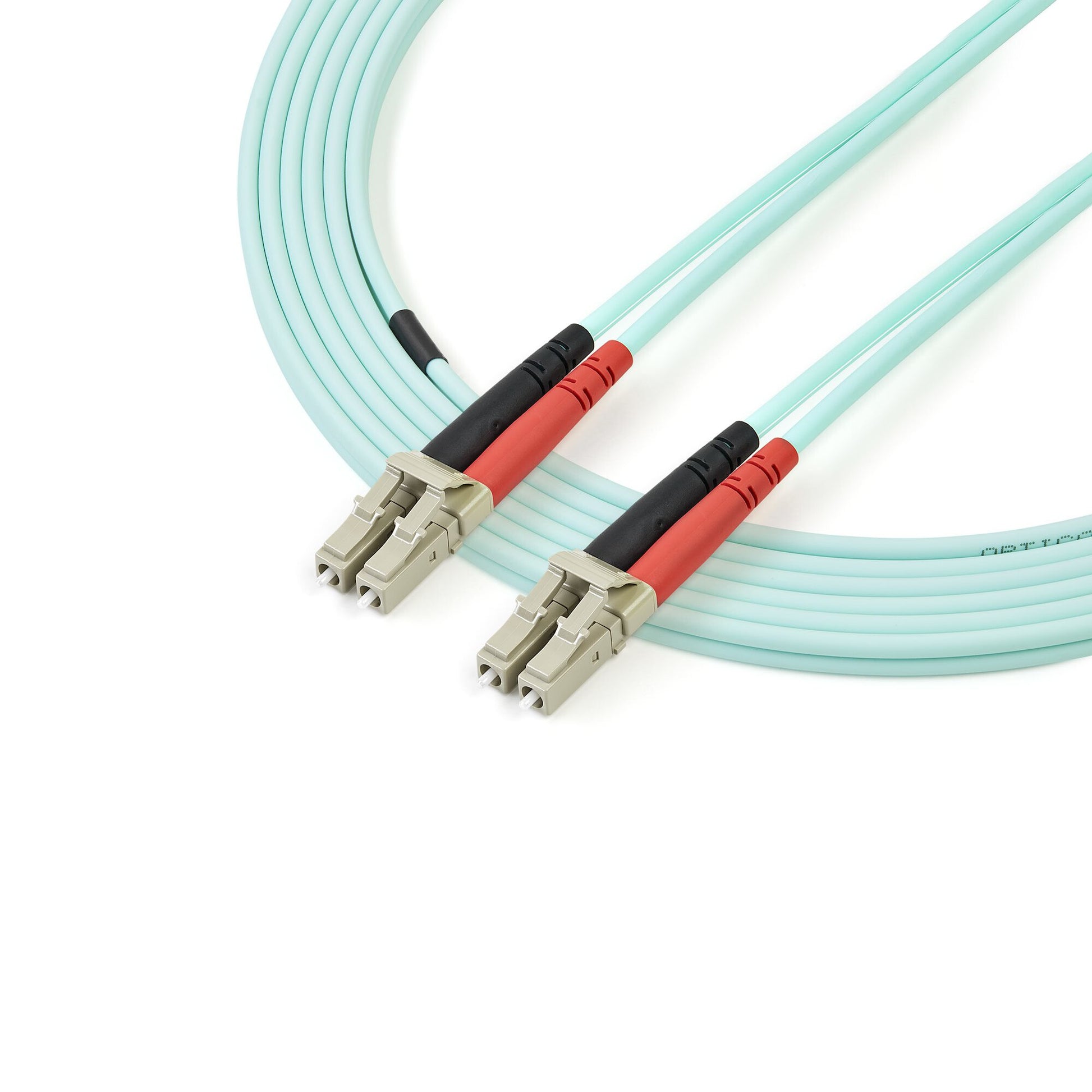

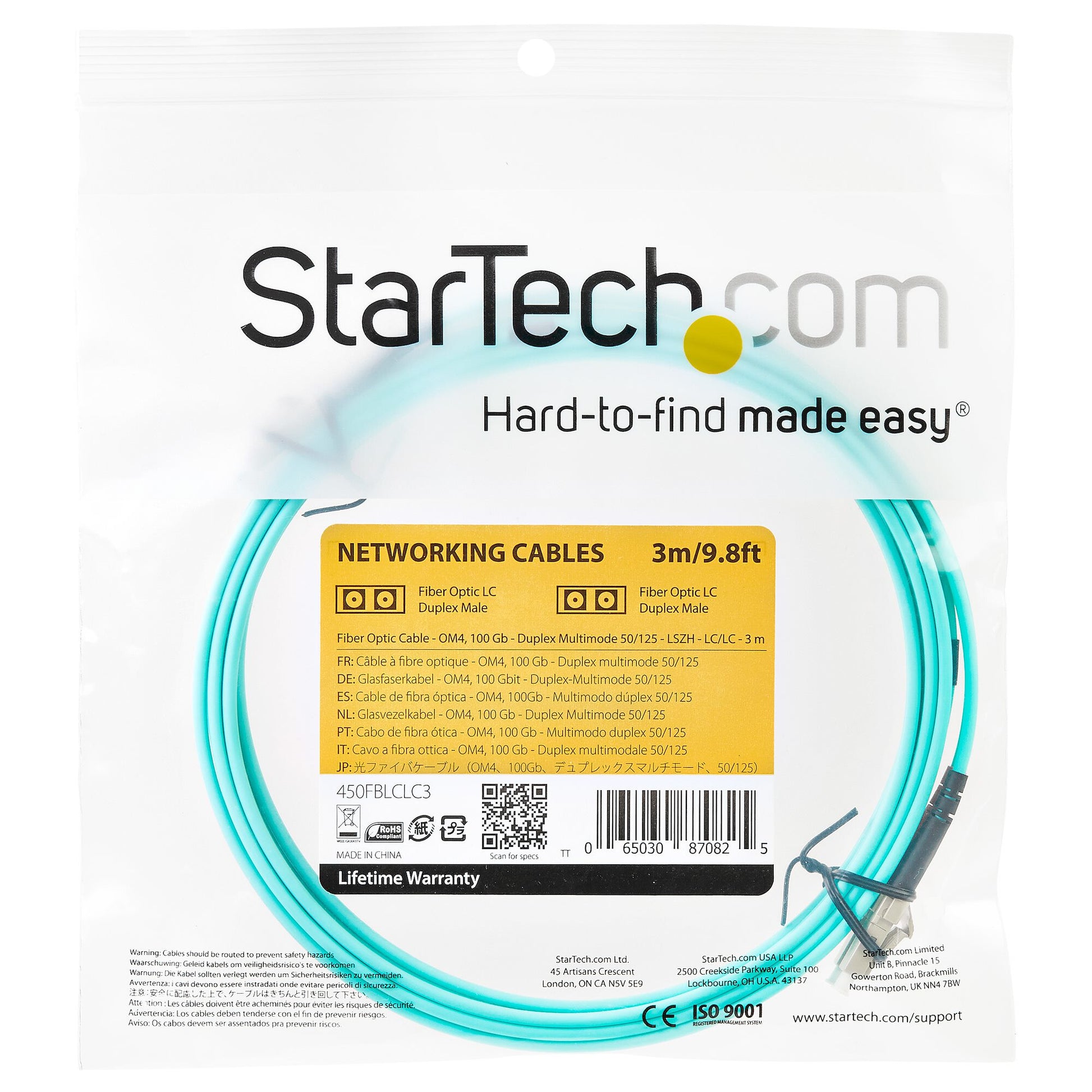

StarTech.com Aqua OM4 Duplex Multimode Fiber Optic Cable - 100 Gb - 50/125 - LSZH - LC/LC - 3 m (10 ft.)~3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G Networks, Low Insertion Loss, LSZH Fiber Patch Co
StarTech.com Aqua OM4 Duplex Multimode Fiber Optic Cable - 100 Gb - 50/125 - LSZH - LC/LC - 3 m (10 ft.)~3m (10ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G Networks, Low Insertion Loss, LSZH Fiber Patch Co
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in 40 and 100 Gigabit networks. The OM4 cable supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources and is backward compatible with your existing 50/125 equipment.
This Aqua OM4 duplex multimode fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. It's ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each OM4 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
The 450FBLCLC3 from StarTech.com is backed by a lifetime warranty.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Data transfer rate | 100 Gbit/s |
| Wavelengths supported | 850 nm |
| Fiber mode structure | Multi-mode |
| Cladding diameter | 125 µm |
| Core diameter | 50 µm |
| Full duplex | Yes |
| Product colour | Aqua colour |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | LC |
| Connector 1 | LC |
| Fibre optic type | OM4 |
| Cable length | 3 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Technical details | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Doesn't contain | Halogen |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 47 g |
| Packaging data | |
|---|---|
| Package weight | 54 g |
| Package height | 15 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85447000 |
Contains N9K06AE, N9K05AE
- 12-month warranty
Couldn't load pickup availability
About the Product
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in 40 and 100 Gigabit networks. The OM4 cable supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources and is backward compatible with your existing 50/125 equipment.
This Aqua OM4 duplex multimode fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. It's ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each OM4 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
The 450FBLCLC3 from StarTech.com is backed by a lifetime warranty.
| Features | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Data transfer rate | 100 Gbit/s |
| Wavelengths supported | 850 nm |
| Fiber mode structure | Multi-mode |
| Cladding diameter | 125 µm |
| Core diameter | 50 µm |
| Full duplex | Yes |
| Product colour | Aqua colour |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | LC |
| Connector 1 | LC |
| Fibre optic type | OM4 |
| Cable length | 3 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Technical details | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Doesn't contain | Halogen |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 47 g |
| Packaging data | |
|---|---|
| Package weight | 54 g |
| Package height | 15 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85447000 |
